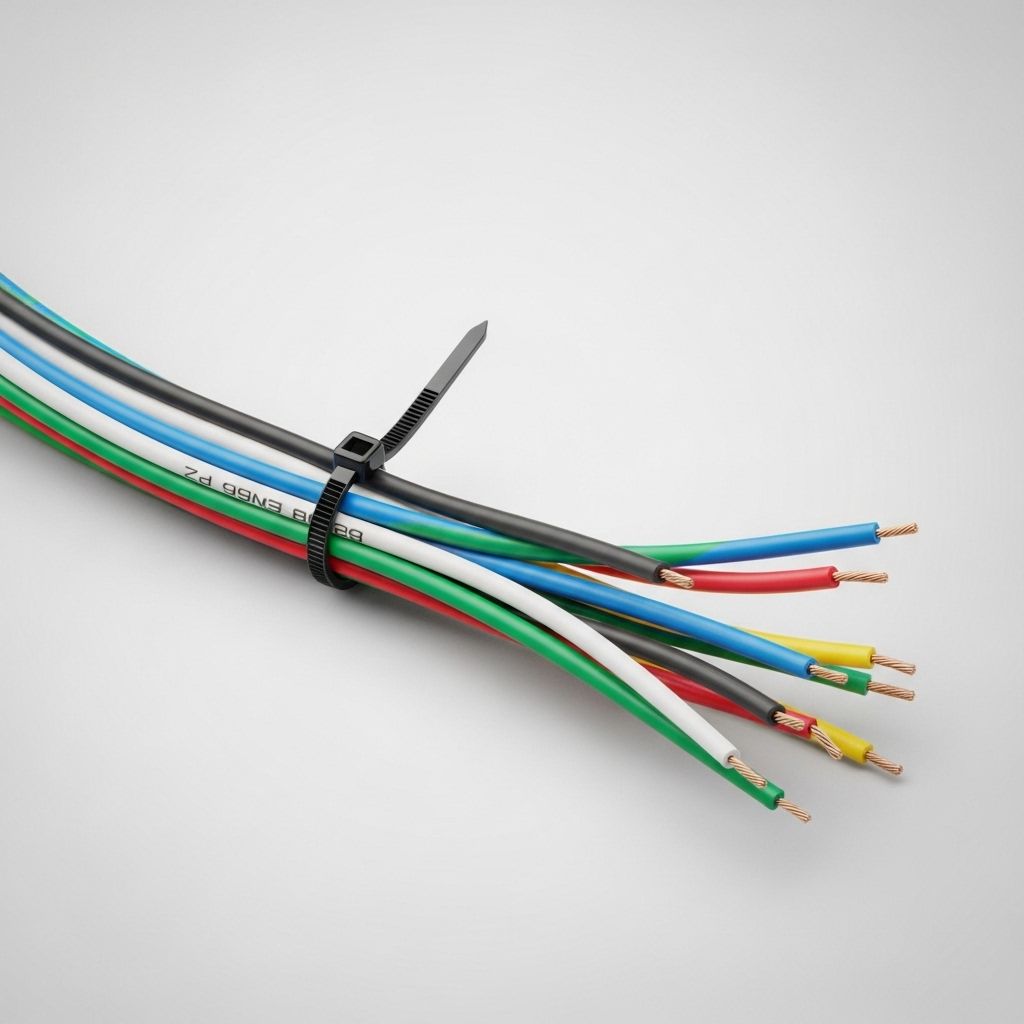

What Electrical Wire Colors Mean: A Comprehensive Guide

Understanding electrical wire colors is critical for anyone tackling home improvement or electrical DIY projects. The colors of wires in your walls aren’t random; they follow a universal code set out by the National Electrical Code (NEC) that ensures safety, consistency, and proper functioning of circuits. This guide breaks down what each wire color means, explains the purpose behind color coding, and offers practical safety tips for homeowners and professionals alike.

Why Wire Colors Matter

Electrical wire color-coding isn’t just for convenience—it’s a vital part of safe and effective electrical work. Properly color-coded wires help you:

• Identify the function of each wire at a glance
• Avoid accidental shocks or shorts
• Ensure correct and code-compliant installations or repairs
• Make future troubleshooting and maintenance easier

If you ignore these color codes, you risk creating a safety hazard, both for yourself and anyone who may work on the system in the future.

Understanding the NEC Wire Color Code

The National Electrical Code (NEC) is the standard in the United States for safe electrical wiring installation. While the NEC provides the baseline, local codes can add more requirements, so always check with your local authority before starting work. Here’s how standard color codes break down:

Detailed Wire Color Meanings and Applications

Black Wires: The Primary Hot Wire

Black wires are almost always used as the main hot (live) wires in residential and commercial wiring. These conductors carry electrical current from the service panel to outlets, switches, and light fixtures. Because they’re always energized when the circuit is on, black wires demand extreme caution during installation or repair. Always presume a black wire is carrying current, unless you’ve turned off the circuit at the breaker box and verified with a tester.

• Used for switches, outlets, and standard lighting circuits
• In switch wiring, black wires are often connected directly to the switch’s input or output terminals

Red Wires: Secondary Hot and Specialized Applications

Red wires function as a secondary hot (live) wire in many systems. You’ll find them in 240-volt installations, interconnected smoke detectors, and for switch legs (where a switch remotely controls a fixture). Red wires also serve as travelers in three-way and four-way switches, allowing lights to be controlled from multiple locations. Like black wires, reds can be live and dangerous.

• Used in 220/240-volt outlets
• Switch legs for lighting circuits
• Interconnecting smoke alarms for simultaneous warning
• Travelers in multi-way switch circuits

White and Gray Wires: Neutral Conductors

White (and sometimes gray) wires are designated as neutral conductors. These wires complete the circuit by returning current to the main electrical panel. Contrary to what their name might suggest, neutral wires can still carry electricity and may pose shock hazards if not handled properly. According to the NEC, white or gray is the only permissible color for neutral wires—never use these for hot or ground connections.

• Connect to the neutral bus bar in the panel
• Visibly distinguishable from hot (black/red) wires
• Sometimes marked with a piece of black or red tape to indicate it’s used as a hot wire (for example, in switch loops): in this case, treat as hot

Green and Bare Copper Wires: Ground

Green wires and bare copper conductors are used for grounding. The purpose of the ground wire is safety: in the event of a fault, the ground wire provides a path for current to flow safely to earth, preventing shocks and reducing fire risk. Never use green or bare wires as hots or neutrals. Sometimes you’ll see green wires with a yellow stripe, especially in large or commercial installations; these are also ground wires.

• Connected to ground bus bar in the panel
• Attached to outlets, switches, and appliances for equipment grounding
• Mandatory by code in almost all installations

Blue and Yellow Wires: Switch Legs and Travelers

Less common in standard home branch circuits, blue and yellow wires are typically used as hot wires in conduits, and in advanced or specialized applications such as:

• Switch legs in lighting (yellow)
• Travelers in three- and four-way switches (blue, sometimes yellow)
• Low-voltage applications (blue)

Blue and yellow wires are never used as neutral or ground. Always treat them with the same caution as black and red wires.

Special Markings and Exceptions

• White wires with black/red tape: Occasionally, white wires are re-tasked as hot wires in switch loops and are marked with a piece of black or red tape. If you see this, treat the wire as a hot conductor.
• Green wires with yellow stripe: Sometimes used in commercial or industrial installations, these are ground wires.
• High-Voltage Circuits: In higher voltage commercial/industrial settings, other color codes may apply (e.g., orange for high-leg delta systems).

Wire Color Coding by Application

Staying Safe: Tips for Handling Electrical Wiring

• Always turn off the power at the breaker before working on any electrical circuit.
• Use a voltage tester to confirm wires are de-energized before touching.
• Never assume a wire is safe based on color alone—previous work may not have followed code.
• Check local codes for any additional color requirements.
• Consult a licensed electrician for complex or unfamiliar work.

Frequently Asked Questions (FAQs)

What happens if wire colors are not followed correctly?

Ignoring wire color codes can result in dangerous wiring errors, potentially causing shocks, fire hazards, or future confusion for anyone working on the system. Wiring must comply with NEC and local code requirements for safety and legal reasons.

Can a white wire ever be hot?

Yes. If a white wire is wrapped in black or red tape, it has been repurposed as a hot wire (commonly in switch loops). This is allowed by code when properly marked, but always treat such wires as potentially live.

What about other colors like orange or brown?

In residential wiring, orange and brown aren’t commonly used, but in commercial or high-voltage applications, these colors can signify special voltage phases or systems. Always consult the specific code for your region or application.

Why are there so many colors in one outlet or box?

Complex devices or multi-switch boxes can have several circuits, travelers, and grounds present, each requiring distinct wire colors to keep circuits organized and safe. Proper labeling and adherence to color codes help with troubleshooting and safety.

Is it safe to DIY electrical wiring?

Basic electrical DIY projects are possible for experienced amateurs, but always follow local codes, best safety practices, and know when to call a professional. Mistakes can have serious consequences.

Conclusion

Understanding electrical wire color codes ensures safer, code-compliant wiring and easier troubleshooting for your home or business. Whether you’re replacing an outlet, installing a new light fixture, or just trying to understand what’s behind your walls, always respect the colors: black and red for hot, white or gray for neutral, green or bare for ground, and always double-check any markings or variations you encounter. When in doubt, consult a licensed electrician for assistance.
