Everything You Need to Know About Water Heater Expansion Tanks
If you’ve ever noticed a small tank attached to your water heater system and wondered about its purpose, you’re not alone. This often-overlooked component, known as a water heater expansion tank, plays a crucial role in protecting your home’s plumbing system. Understanding what it does, why it’s necessary, and how to maintain it can help prevent costly damage and ensure your water heating system operates efficiently and safely.
What Is a Water Heater Expansion Tank?

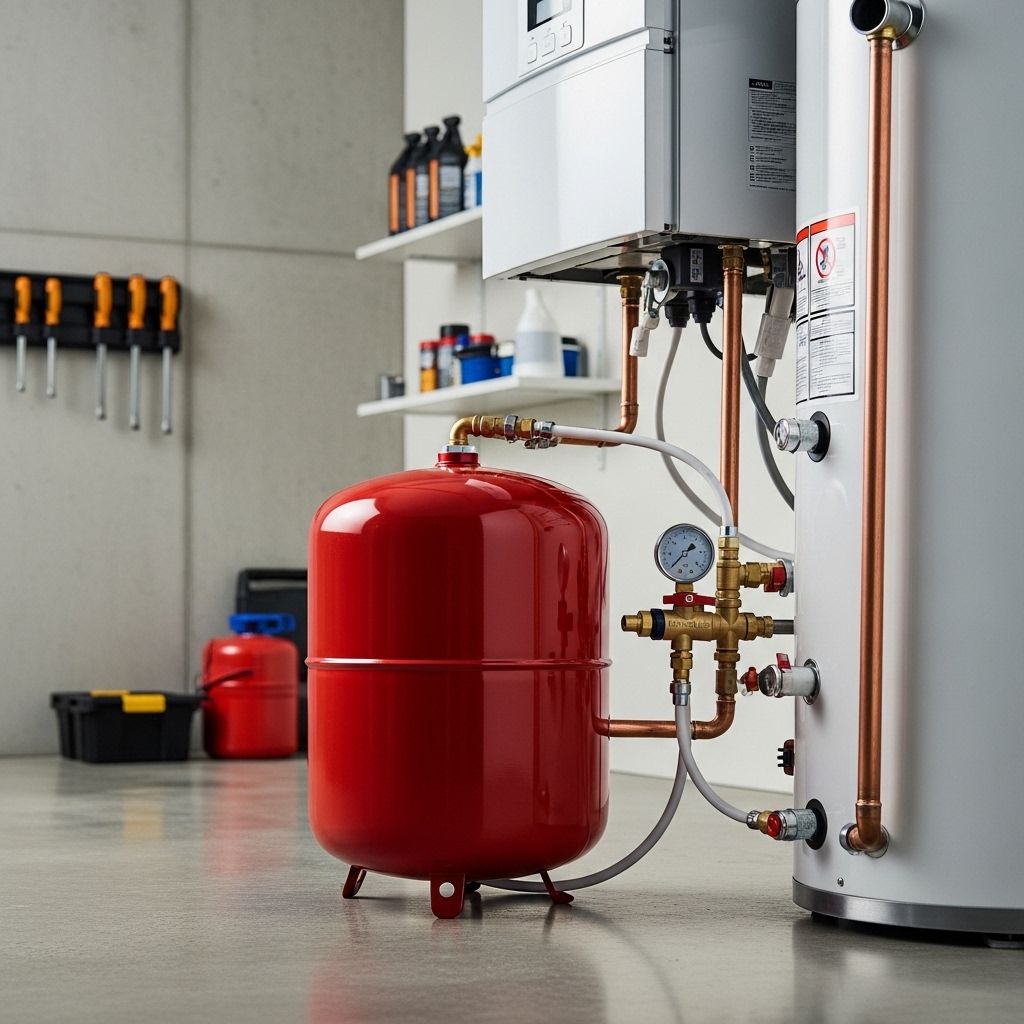

A water heater expansion tank is a small, secondary tank that attaches to the water supply pipe leading to your water heater. Also known as a thermal expansion tank, this device is designed specifically to handle the natural expansion of water that occurs during the heating process. When water heats up, its volume increases—a phenomenon known as thermal expansion. The expansion tank provides additional space for this expanding water to go, preventing pressure buildup in your plumbing system.
Typically, these tanks are much smaller than the main water heater tank and are often cylindrical in shape. They’re usually made of steel or other durable materials designed to withstand high pressure and are installed near the water heater on the cold water inlet pipe.
Why Water Heater Expansion Tanks Are Necessary
Understanding why expansion tanks have become essential components in modern plumbing systems requires looking at how water systems have evolved over time:
The Problem of Thermal Expansion
When water is heated in your water heater, it naturally expands in volume. In fact, water expands by approximately 2-3% when heated from cold to the typical setting of 120-140°F. This might not sound like much, but in a closed plumbing system, this expansion creates significant pressure.
In older plumbing systems, this expanding water would simply flow back into the municipal water supply, effectively using the city’s water system as a massive expansion tank. However, modern plumbing codes and concerns about water contamination have changed this dynamic.
Closed Plumbing Systems
Today’s homes typically have what plumbers call a “closed” plumbing system. This means that water can flow into your home from the municipal supply, but devices like check valves, pressure reducers, or backflow preventers stop water from flowing back out into the city lines. These devices are installed to prevent potential contamination of the public water supply.
While these backflow prevention measures protect public health, they create a new problem: the expanding hot water now has nowhere to go. Without an expansion tank, this leads to increased pressure within your home’s plumbing system, which can cause numerous issues.
Consequences of Not Having an Expansion Tank
Without a proper expansion tank in a closed plumbing system, you might experience:
- Premature failure of your water heater
- Leaking or damaged plumbing fixtures
- Burst pipes
- Water heater pressure relief valve repeatedly discharging
- Reduced lifespan of appliances connected to your water system
- Strange banging or hammering noises in your pipes (water hammer)
How Water Heater Expansion Tanks Work
The design of a water heater expansion tank is elegantly simple yet remarkably effective:
The Internal Design
Inside an expansion tank, you’ll find a rubber diaphragm or bladder that divides the tank into two separate chambers:
- One chamber contains air, which is compressible
- The other chamber contains water from your plumbing system
The air chamber is typically pre-charged with air pressure that matches your home’s water pressure. This ensures the system is balanced under normal conditions.
The Expansion Process
When your water heater activates and begins heating water, the resulting thermal expansion creates excess volume and pressure. Here’s what happens:
- As water heats and expands, pressure increases in the plumbing system
- The excess water flows into the water chamber of the expansion tank
- The rubber diaphragm flexes, compressing the air in the air chamber
- The air cushion absorbs the pressure, keeping your overall system pressure stable
- When hot water is used and the system cools, the compressed air pushes the extra water back into the main plumbing system
This cycle repeats each time your water heater runs through its heating cycle, providing continuous protection against pressure fluctuations.
Do You Need a Water Heater Expansion Tank?
Not every home requires an expansion tank, but many modern plumbing codes now mandate their installation. Here’s how to determine if your home needs one:
Signs You Need an Expansion Tank
You likely need a water heater expansion tank if:
- Your home has a “closed” plumbing system with a backflow preventer, check valve, or pressure reducing valve
- Your local building code requires one (many jurisdictions now do)
- You notice fluctuating water pressure when using hot water
- Your temperature and pressure relief valve (T&P valve) on the water heater frequently discharges water
- You hear banging or knocking in your pipes when using hot water
- Your water heater is relatively new, but the tank or connections are showing signs of leaking
Code Requirements
Many local plumbing codes now require expansion tanks when a new water heater is installed, especially in homes with closed plumbing systems. Always check your local building codes or consult with a licensed plumber to ensure compliance with regulations in your area.
Choosing the Right Expansion Tank
Selecting the appropriate expansion tank for your system involves several considerations:
Sizing Considerations
Expansion tanks come in various sizes, typically ranging from 2 to 5 gallons for residential use. The correct size depends on:
- The capacity of your water heater (larger water heaters require larger expansion tanks)
- Your home’s water pressure
- The water heater’s temperature setting
As a general rule, water heaters up to 50 gallons typically use a 2-gallon expansion tank, while larger water heaters may require 4 or 5-gallon models. For precise sizing, consult with a professional plumber who can calculate the exact requirements based on your specific system.
Types of Expansion Tanks
There are two main types of expansion tanks available:
| Type | Description | Best For |
|---|---|---|
| Diaphragm-type | Uses a fixed rubber diaphragm to separate air and water | Most residential applications |
| Bladder-type | Uses a flexible bladder that can be replaced if damaged | Higher-end systems and situations where maintenance access is good |
Installation of Water Heater Expansion Tanks
While many homeowners with plumbing experience can install an expansion tank, it’s often best left to professionals to ensure proper setup.
Proper Location
The expansion tank should be installed on the cold water supply line leading to the water heater. Ideally, it should be positioned within 18 inches of the water heater and supported properly to prevent stress on the plumbing connections. Some installations use a tee fitting with a vertical pipe where the expansion tank attaches, while others mount it horizontally with proper support brackets.
Installation Steps
A basic installation typically follows these steps:
- Turn off the water supply and power to the water heater
- Release pressure in the system by opening a hot water faucet
- Check and adjust the expansion tank’s pre-charge pressure to match your home’s water pressure
- Install a tee fitting on the cold water supply line
- Connect the expansion tank to the tee using appropriate connectors and thread sealant
- Ensure the tank is properly supported
- Turn the water supply back on and check for leaks
- Restore power to the water heater
Maintenance and Troubleshooting
Like any plumbing component, expansion tanks require periodic maintenance to ensure they function properly.
Regular Maintenance
To keep your expansion tank in good working order:
- Check the air pressure in the tank annually using a tire pressure gauge
- Inspect for signs of corrosion or leaks
- Test that the tank is functioning by tapping it lightly – the top portion should sound hollow (air-filled) while the bottom should sound solid (water-filled)
- Verify that the tank is still properly supported and not putting stress on plumbing connections
Common Problems
Be aware of these potential issues with expansion tanks:
- Loss of air pressure in the tank (requires recharging)
- Ruptured internal diaphragm or bladder (requires replacement)
- Corrosion at connection points
- Waterlogged tank (when the entire tank fills with water due to diaphragm failure)
If you notice persistent pressure problems, hear water sloshing inside the entire tank, or see leaks, it’s likely time to replace the expansion tank.
Frequently Asked Questions (FAQs)
Q: How long do water heater expansion tanks last?
A: Most expansion tanks have a lifespan of 5-10 years, though this can vary based on water quality, pressure conditions, and tank quality. It’s generally a good practice to replace the expansion tank when installing a new water heater.
Q: Can I install an expansion tank myself?
A: While it’s possible for experienced DIYers to install an expansion tank, professional installation is recommended to ensure proper sizing, placement, and pressure settings. Incorrect installation can lead to damage or reduced effectiveness.
Q: How much does an expansion tank cost?
A: Residential expansion tanks typically cost between $40 and $200 for the tank itself, depending on size and quality. Professional installation may add $150-$350 to the total cost, though this varies by location and complexity of the installation.
Q: What happens if my expansion tank fails?
A: A failed expansion tank can no longer absorb excess pressure, which may lead to high pressure in your plumbing system, water heater damage, leaking fixtures, and potentially dangerous conditions. If you suspect failure, consult a plumber promptly.
Q: Is an expansion tank required by code?
A: Many local building codes now require expansion tanks for new water heater installations, especially in closed plumbing systems. Check with your local building department or a licensed plumber for requirements in your area.
Conclusion
Water heater expansion tanks may be small components in your home’s plumbing system, but they serve a vital function in protecting your water heater and plumbing from damage caused by thermal expansion. In modern homes with closed plumbing systems, these tanks are not merely optional accessories but essential safety devices.
By understanding how expansion tanks work, recognizing when you need one, and ensuring proper installation and maintenance, you can extend the life of your water heater, prevent plumbing damage, and maintain consistent water pressure throughout your home. If you’re uncertain about your home’s needs or notice any signs of pressure problems, consulting with a qualified plumbing professional is always the safest approach.
