Understanding Drain and Vent Lines: A Complete Homeowner’s Guide
Maintaining proper airflow to safeguard your home from sewer gas and clogs.
Behind every smoothly running sink, shower, and toilet is a network of pipes dedicated to carrying wastewater away and keeping dangerous sewer gases outside your home. Drain and vent lines are among the most crucial, yet often overlooked, components of every household’s plumbing. Learning how these systems work is vital for troubleshooting issues and maintaining a healthy, functional plumbing system.
What Are Drain and Vent Lines?
Drain lines are pipes that carry used water and waste out of your home to a municipal sewer or septic system. Vent lines help air circulate through these pipes, allowing wastewater to flow freely and helping to prevent harmful sewer gases from entering your living spaces.
- Drain lines: Remove wastewater from sinks, tubs, toilets, and appliances.
- Vent lines: Maintain neutral air pressure in the drainage system and allow sewer gases to vent safely outside.
Why Drain and Vent Lines Matter
Drain and vent lines are vital for a safe, odor-free, and efficient plumbing system. Without proper venting, water won’t drain easily, and sewer gases could seep inside, creating health hazards and unpleasant smells. Additionally, vents protect water trap seals, which act as barriers against sewer gases.
The Role of Trap Seals
A trap seal is the standing water in a curved section of pipe (the P-trap or S-trap) under each fixture. This water acts as a protective barrier between your living spaces and sewer gases.
- If pressure in the plumbing changes rapidly (due to poor venting), this water can be sucked out (siphonage) or pushed toward the fixture (backpressure), breaking the seal and letting odors and gases in.
- Properly installed vents introduce air and balance pressure, preserving the integrity of these water seals.

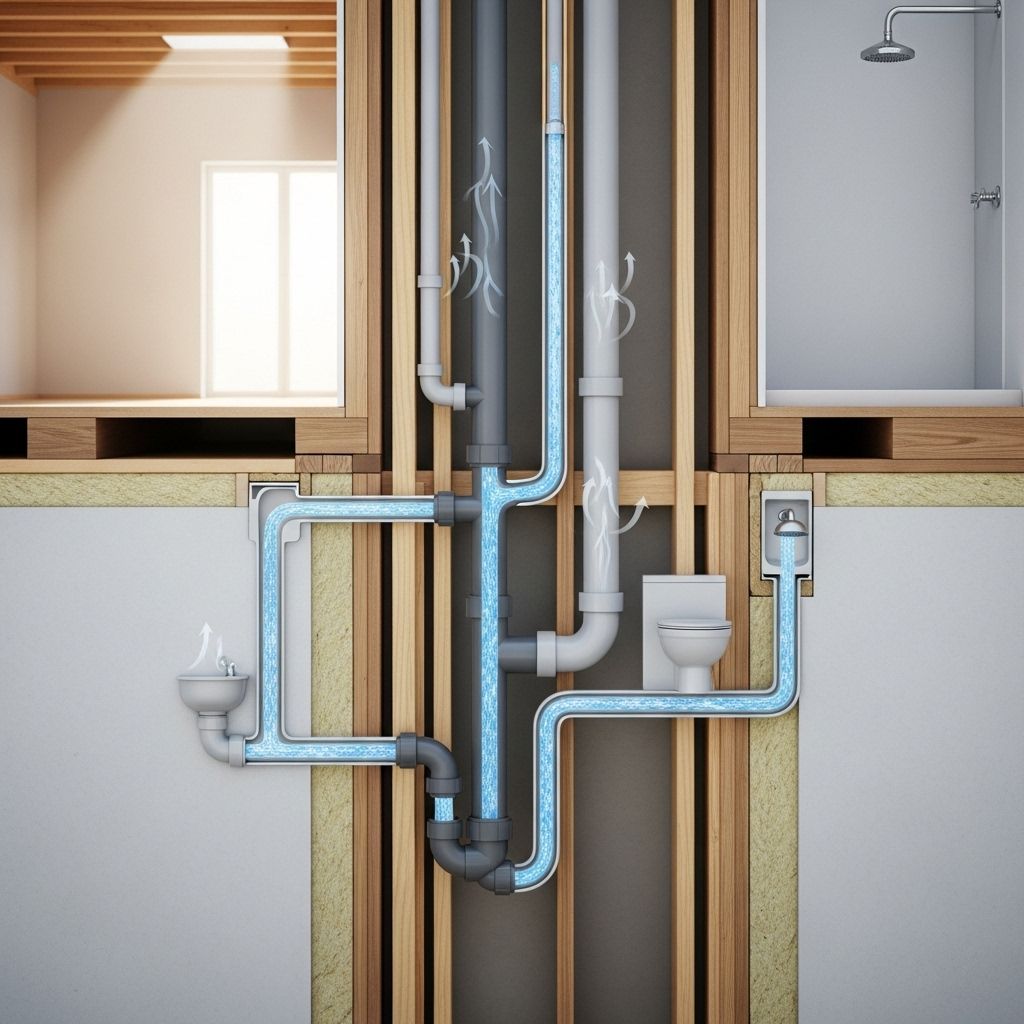

How Drain and Vent Systems Work Together
Drain and vent lines work as a team. When you use a fixture, wastewater flows down the drain lines. Simultaneously, air enters the system through the vents, balancing air pressure and allowing water to drain smoothly. This prevents suction or backflow, both of which can disrupt the trap seal.
Air and Water Flow Dynamics
- Water flowing through drain pipes creates negative pressure behind it (siphonage) unless air is introduced through vent pipes.
- Vent pipes allow atmospheric air into the drain system, breaking potential vacuums.
- Vents also allow sewer gases to escape upward and outside the home, not into bathrooms or kitchens.
Main Parts of Drain and Vent Systems
A home’s average drain and vent system contains the following parts:
- Drain-Waste Pipe: Sloped pipes that carry wastewater away.
- P-Trap or S-Trap: Curved section keeping a small water barrier (trap seal).
- Branch Drains: Horizontal or sloped sections connecting each fixture to the main waste line.
- Vent Pipes: Slender pipes leading from fixtures up through the roof, introducing airflow and releasing gases.
- Vent Stack: Main vertical vent pipe that goes up to the roof, connecting multiple branch vents.
What others are reading
Types of Drain and Vent Systems
There are several different ways houses are plumbed, often depending on the age and layout of the home. Here are the most common system layouts:
1. Individual Vent System
Each fixture has its own vent pipe connecting separately to the main vent stack. This is a traditional system and offers maximum protection of each trap seal, though it’s labor-intensive to install.
2. Common Vent System
Two fixtures (such as back-to-back sinks) share one vent and one drain pipe. This option works if they are on opposite sides of the same wall.
3. Wet Vent System
Here, a single pipe acts as both a drain and a vent for multiple fixtures. Wet venting is common in bathrooms where space is tight; local building codes regulate the number and type of fixtures that can share a wet vent.
4. Circuit Vent System
This modern method vents a “battery” of fixtures (as few as two and up to eight) with one vent pipe. Both the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) allow circuit venting, making it efficient for bathrooms with multiple fixtures along a single horizontal branch. If four or more water closets (toilets) are connected, an extra relief vent is typically required.
5. Island Fixture Vent
When venting sink islands (often found in kitchens), a standard vent going up through the roof is usually impossible. Instead, a loop vent or island fixture vent is used, requiring a careful assembly of pipes to keep the drain vented below the counter before connecting to a regular vent higher up in the system.
Installation Best Practices
Correctly installing drain and vent lines is critical for system reliability and code compliance. Here are essential guidelines and best practices:
- Pipe Slope: Horizontal drain pipes should slope at least 1/4 inch per foot for proper gravity flow. Vents should maintain an upward pitch where possible.
- Vent Height: Branch vents must rise to at least 42 inches above the floor (about six inches above the top of the highest fixture) before running horizontally toward the main vent stack.
- Vent Termination: Roof vent stacks should terminate at least 6 inches above the roof surface and 3 feet from any opening (windows or skylights). The vent stack must be properly flashed to prevent leaks.
- Pipe Size: Drain sections usually require at least a 2-inch diameter, while vent sections may be 1.5 inches, based on local code and fixture type.
Additional Considerations
- Always check local plumbing codes for pipe sizing, venting requirements, and allowable materials.
- Only make holes in framing within acceptable limits (to avoid structural damage), especially when running large-diameter drain pipes through studs or joists.
Signs of Drain and Vent Problems
Plumbing systems often provide clear signals when there’s an issue with drains or vents. Recognize these common symptoms to catch and resolve issues early:
- Slow Draining Fixtures: Water pooling in sinks, tubs, or showers may indicate a clogged or obstructed drain or inadequate venting.
- Gurgling Sounds: Bubbling noises from drains or toilets when another fixture is used suggest vent problems or siphoning trap seals.
- Sewer Odors: Sewer gas smells in the house usually mean that a trap seal has been lost, a vent pipe is blocked, or a fixture is missing a proper vent.
- Overflowing or Backups: Overflows in floor drains, toilets, or tubs signal significant drainage or venting blockages that may require a professional plumber.
How to Troubleshoot and Fix Common Issues
Address simple issues promptly; for major problems, call a professional. Here are basic troubleshooting and repair tips for common drain and vent problems:
- Clear Clogs: Use a plunger, hand auger, or enzyme-based drain cleaner (never mix chemicals) to remove blockages from drain lines. Avoid caustic chemicals that can damage pipes.
- Check Traps: Make sure P-traps are installed correctly and contain water. Run water into infrequently used fixtures to refill dry traps.
- Examine Vents: Clear debris, leaves, or snow from roof vent terminations; blockages reduce air flow and trap protection.
- Inspect Plumbing Connections: Look for loose pipe fittings, leaks, or improperly pitched pipes under sinks and in crawlspaces.
If symptoms persist, you may need to call a licensed plumber to use cameras or specialized tools to locate and fix hidden issues.
When to Upgrade or Replace Drain and Vent Lines
Older homes may have outdated or corroded pipes, or venting systems that no longer meet modern codes. Consider replacing or upgrading pipes if you notice:
- Frequent or stubborn clogs and backups
- Visible pipe corrosion, rust, or leaks
- Persistent sewer gases in the home
- Major renovations adding new bathrooms or appliances
Upgrading to modern PVC or ABS piping, and bringing venting up to code, improves both system longevity and home safety.
Drain and Vent Maintenance Tips
- Periodically flush drains with hot water to prevent buildup.
- Keep food scraps and grease out of kitchen drains.
- Check under sinks for leaks or unusual moisture.
- Clean debris from roof vent openings each season.
- Run water regularly in seldom-used fixtures to keep traps full.
Drain and Vent Plumbing Table: Key Components
| Component | Function | Typical Material | Notes |
|---|---|---|---|
| P-Trap | Seals sewer gases with standing water | PVC, ABS, Metal | Under each fixture |
| Drain Pipe | Carries waste water away | PVC, ABS, Cast Iron | Sloped for gravity flow |
| Vent Pipe | Introduces air, allows gas escape | PVC, ABS, Copper | Vertical through roof |
| Vent Stack | Main vent to exterior | PVC, ABS, Cast Iron | Rises above roofline |
| Clean-Out | Provides access for clearing clogs | PVC, Metal | Usually threaded cap |
Frequently Asked Questions (FAQs)
Q: Why is venting so important in plumbing systems?
A: Vents balance air pressure in the drainage system, protect trap seals, ensure free flow of waste, and prevent dangerous sewer gases from entering your home.
Q: How can I tell if my vent is blocked?
A: Signs of a blocked vent include slow drainage, gurgling sounds from drains, occasional sewer odors, and frequently empty or dry traps. Check roof vents for visible obstructions as a first step.
Q: Can fixtures share a vent pipe?
A: Yes, fixtures can sometimes share vent pipes through systems such as common venting, wet venting, or circuit venting. Always follow local plumbing codes for correct installation and sizing.
Q: What happens if I don’t fix a drain or vent problem?
A: Unresolved issues can lead to sewer gas entering the home, slow or backed-up drains, and water damage. Persistent problems may indicate a need for professional repair or system upgrades.
Q: How often should I inspect my drain and vent lines?
A: Annually check visible pipes for leaks and corrosion, keep vents clear of debris seasonally, and address any slow drainage or odor issues immediately.
Conclusion
Understanding the roles and maintenance of your home’s drain and vent lines is key to a safe, efficient, and trouble-free plumbing system. Routine care—along with prompt attention to problems—ensures wastewater flows out and harmful gases stay outside where they belong.
