A Complete Guide to Installing a Ceiling Fan Electrical Box
Proper support and secure mounting prevent wobbling and ensure electrical code compliance.

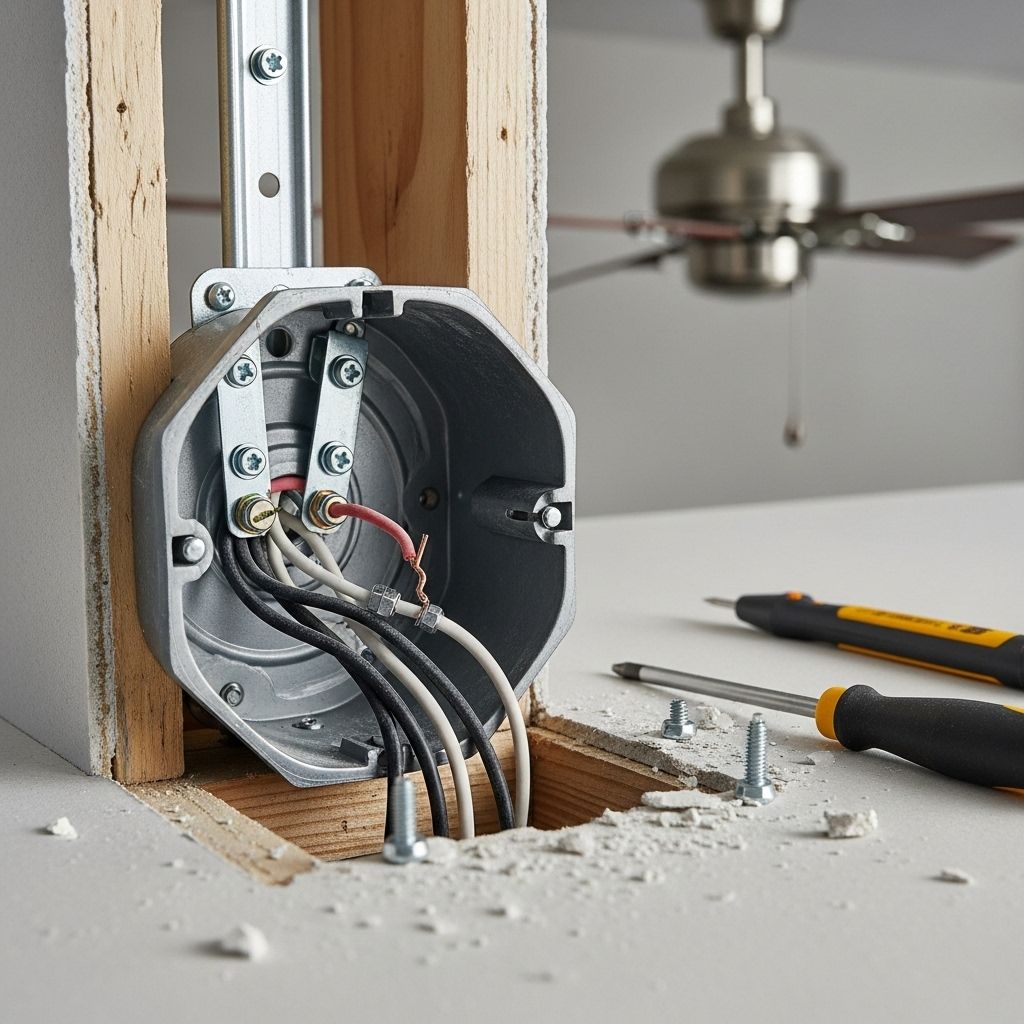

Installing a Ceiling Fan Box: The Complete Step-by-Step Guide
If you want to install, replace, or upgrade a ceiling fan, choosing the right electrical box and installing it safely is the key to success. Unlike light fixtures, ceiling fans are heavy and vibrate, so a standard box may not provide adequate support. This guide explains everything: assessing your existing setup, selecting the correct box, removing old fixtures, securing the fan box, wiring, and troubleshooting for a safe and effective installation. Whether you’re updating your living room or preparing a new build, these pro-approved steps make installation straightforward for most confident DIYers.
Why Special Ceiling Fan Boxes Matter
Standard electrical boxes (plastic or metal) are rated only for light fixtures, which weigh much less than ceiling fans. Ceiling fan boxes are specifically designed to support the dynamic load and weight (often 35 lbs or more) of ceiling fans. Using a box not rated for fans can risk the fixture falling, cause electrical issues, or lead to code violations.
- Fan-rated boxes are certified to support fans safely.
- Plastic or metal boxes not labeled “fan-rated” are unsafe for fan installation.
- Code compliance requires fan-rated boxes for all ceiling fan installations.
Tools & Materials Needed
- Voltage tester
- Flathead & Phillips screwdrivers
- Drill and driver bits
- Tape measure
- Wire strippers
- Ceiling fan-rated electrical box
- Mounting bracket/strap
- Wood screws or lag bolts
- Wire connectors/nuts
- Stud finder (optional)
- Safety goggles and gloves
- Ladder or step stool
- Potential spare ceiling joist brace (for retrofits)
Step 1: Turn Off Power
Safety always comes first. Before any electrical work, switch off power to the fixture at the circuit breaker. Use a voltage tester to confirm that the fixture is not live before proceeding.
Step 2: Remove the Old Fixture
- Use a screwdriver to detach the existing light or fan fixture from the ceiling box.
- Carefully disconnect wires (typically black, white, and ground).
- Inspect the box: Is it fan-rated? Check labels or markings on the box itself. Plastic boxes almost never are.
- If box is not fan-rated, proceed with replacement.
Identifying Fan-Rated Boxes
- Look for a label inside the box stating it’s rated for at least 35 lbs.
- Metal boxes may have “ceiling fan box” stamped on them.
- Plastic boxes for fans are much thicker and sturdier, with metal reinforcement.
Step 3: Remove the Old Electrical Box
Fan boxes must be directly attached to the ceiling structure (joist or brace). Many older boxes are only nailed to drywall or loosely mounted.
- If the box is nailed or screwed to a joist, remove screws/nails to extract the box.
- If the box is between joists, it may be attached to a brace bar—unscrew and slide out the assembly.
- Gently pull the wires out.
- Inspect the opening to ensure enough space for the new fan-rated box.
Step 4: Choose the Right Ceiling Fan Box
There are several types of fan-rated boxes, designed for retrofits, new builds, and special construction:
| Type of Box | Best For | Mounting Method | Max Weight |
|---|---|---|---|
| Metal Pancake Box | Direct joist mounting, shallow spaces | Screwed directly to joist | Typically 35-70 lbs |
| Plastic Fan-Rated Box | Standard installations with joist access | Screwed to joist/brace | 35 lbs |
| Expandable Brace Box | Retrofits for rooms without accessible joists | Expands and anchors between joists | Up to 70 lbs |
| Brace-and-Box Kit | Whole new installations/major remodels | Mounts via included support bar | Varies (check product specs) |
What others are reading
Choose a box that fits your space, supports the required weight, matches ceiling thickness, and allows for proper wiring. Always check the package for “fan-rated” designation.
Step 5: Install the New Fan-Rated Box
- Position the box against a joist or brace. If using a brace kit, install the support bar between joists and secure tightly (usually to 16-inch or 24-inch on-center framing).
- For pancake or standard boxes, screw directly into the joist. Use wood screws or lag bolts rated for structural loads.
- For expandable brace boxes, insert the bar into the opening and twist until it’s tight between the joists. Attach the box to the brace with provided machine screws.
- Pull the wiring into the new box before securing.
- Ensure the box is flush with the ceiling surface for a clean finish.
- Give the mounted box a firm shake—it should not move or wobble at all.
Step 6: Wire the Ceiling Fan Electrical Box
Wiring a ceiling fan box is similar to wiring a light fixture but may involve extra leads if your fan has a light kit or remote.
- Typically, connect black (fan power), blue (light kit), white (neutral), and green/bare (ground) wires.
- Always match wire colors with corresponding house wires; use wire nuts to connect.
- All wire connections should be tight and covered by the included connectors.
- Carefully tuck wires into the box, leaving enough slack but not crowding.
- Attach the bracket supplied by the fan manufacturer—this connects directly to the box via machine screws.
Step 7: Attach the Fan Mount and Test Support
- Connect the fan’s mounting bracket to the electrical box using the provided screws.
- Follow fan manufacturer’s instructions for bracket installation.
- Ensure the bracket and box together support the fan’s full weight. The assembly must not sag.
- Give a final shake to ensure everything is solid.
- Proceed to complete fan installation as per manufacturer’s manual.
Tips for Successful Ceiling Fan Box Installation
- Always use a box marked “ceiling fan-rated.” Never trust a plain plastic box for fan support.
- If uncertain about wiring, hire a licensed electrician.
- Check local electrical codes—many areas require inspection.
- Use a stud finder to locate joists if unsure where to place box.
- Confirm fixture compatibility—the fan’s mounting system must align with box type.
Troubleshooting & Common Pitfalls
- Wobbly Fan: Most often caused by an insufficiently supported box or loose mounting brackets. Tighten all fasteners and use only approved boxes.
- Electrical Issues: Verify all wire connections are correct. Miswiring may lead to non-functioning lights, fans, or switches.
- Ceiling Damage: If drywall cracks when removing the box, patch with spackle and ensure the new box covers the opening tightly.
- Box Doesn’t Fit: Choose a shallower box or trim adjacent drywall, always maintaining structural support.
Safety Precautions
- Turn off circuit breakers before starting any removal or installation.
- Use insulated tools.
- Verify box support before wiring—never hang a fan from a loose box.
- Do not overload box capacity per code—follow manufacturer instructions.
Ceiling Fan Box Installation FAQs
Q: Can I use any plastic or metal box for a ceiling fan?
No. Only boxes specifically marked and certified as “ceiling fan-rated” should be used to support ceiling fans.
Q: How do I know if my current box is fan-rated?
Check inside the box for labels or rating marks showing “ceiling fan box” or load capacity (>35 lbs). Plastic boxes almost never are.
Q: Do I need a permit to install a fan box?
Depends on local codes—many require a permit and sometimes inspection for major electrical changes or new installations. Always check your local requirements.
Q: What if there is no ceiling joist where I want to install the fan?
Use an expandable brace box kit designed to support a fan between joists. These install through the fixture opening.
Q: How do I connect my ceiling fan wiring?
Most fans use black for the motor, blue for the light, white for neutral, and green/bare for ground. Match each wire with the corresponding house wires and secure with wire connectors.
Q: Can I install a fan box without attic access?
Yes. Retrofit brace kits are designed for installation from below, through the existing fixture hole, and require no attic access.
Summary Table: Ceiling Fan Box Essentials
| Feature | Requirement |
|---|---|
| Rating | “Ceiling Fan-Rated” label, supports at least 35 lbs |
| Mounting | Direct joist/brace support, never just drywall |
| Installation | Use bracket/strap as per manufacturer’s instructions |
| Wiring | Properly match house and fan wires with connectors |
| Inspection | Give final shake test for stability before hanging fan |
Final Thoughts: Doing the Job Right
Installing a ceiling fan box is a foundational step in adding or upgrading a ceiling fan. Using the correct hardware ensures not only your fixture’s stability but also your family’s safety and code compliance. Take your time, use the right materials, and don’t hesitate to consult with a professional for wiring or structural questions. With care and attention, you can enjoy improved comfort and aesthetics for years to come.
