How to Install an Electrical Box in a Finished Wall
Gain confidence in adding discreet power outlets with clear, code-approved guidance.
Need a new outlet, switch, or connection point in an already finished wall? Installing an electrical box—also known as an old-work or remodeling box—is a straightforward DIY home improvement project that doesn’t require tearing open large sections of drywall. With the right tools, safety knowledge, and careful planning, you can add power where you need it. This comprehensive guide walks you through each step for a safe, code-compliant installation.
Why Install an Electrical Box in a Finished Wall?
Homeowners often discover the need for new electrical boxes after moving in: maybe for a wall-mounted TV, a computer in a new home office, or extra lighting. Old-work or remodeling boxes are designed to be installed after drywall or plaster is up, making them perfect for upgrading or modifying existing circuits without major renovation work.
Tools and Materials You’ll Need
- Stud finder (magnetic or electronic)
- Measuring tape and pencil
- Torpedo level or standard level
- Electric drill and drill bits (spade bit for studs)
- Oscillating tool or jab saw for cutting drywall
- Voltage tester or circuit tester
- Screwdriver (flathead and Phillips)
- Wire stripper/cutter
- Remodeling (old-work) electrical box (plastic or metal)
- NM cable (Romex) of the correct gauge for your circuit (typically 12 or 14 AWG)
- Electrical tape
- Cover plate for the box
Step 1: Planning the Installation
Before you begin, determine where you want your new electrical box and plan your wiring route. Usually, you’ll draw power from an existing nearby outlet or light switch. Key planning steps include:
- Locate studs: Use a stud finder to identify the wall framing. Electrical boxes must be installed between studs unless using special boxes designed for mounting to studs directly.
- Select the location: Measure up from the floor to match the height of other outlets in the room (commonly 12–16 inches for outlets, 48 inches for switches). Mark the center for visual consistency.
- Check for obstacles: Ensure your chosen location isn’t blocked by pipes, wires, or other obstruction inside the wall.
- Consider box type: Standard old-work boxes use flip-out clamps; some metal boxes have expandable tabs for plaster or thick walls.
Step 2: Shutting Off the Power
Safety is paramount around electricity. Follow these precautions:
- Turn off power to the circuit you’ll be working on at the breaker panel.
- Test EVERY nearby outlet and switch using a voltage tester to confirm power is off.
Remember: Never assume both outlets in a duplex receptacle are on the same circuit. Always test both sockets before proceeding.
Step 3: Marking and Cutting the Opening
With power off and tools ready:
- Hold the electrical box against the wall at your marked spot. Trace the outline using a pencil, making sure it’s level with your torpedo or standard level for a tidy appearance.
- Don’t trace around any box tabs or clamps; trace only the box body.
- Using an oscillating tool or jab saw, carefully cut out the drywall along your trace marks. Take your time to avoid overcuts that will leave gaps around the box.
Remove the drywall cutout and test-fit the box. It should fit snugly. If using a box with metallic tabs, confirm the tabs will open fully to grip the back side of the drywall or plaster once installed.
Step 4: Routing the Wire to the New Box
To power your new outlet, you’ll need to run wiring from an existing outlet or switch to your new box.
- Decide on the best cable route—through the wall cavity, over the ceiling, or under the floor (depending on accessibility).
- Measure and cut NM cable long enough to reach the new box, allowing for ample slack (leave at least 6 inches of conductor and 3 inches from the box face, as per code).
- If you need to cross wall studs, use a spade bit and long extension to drill a 3/4″ to 1″ hole through the center of the studs. Avoid notching too close to the wall surface.
- Insert the cable into the existing outlet box (use a cable clamp or knockout as needed). Feed the other end through the hole in your new old-work box’s back.
What others are reading
Table: Standard Outlet and Switch Heights
| Device Type | Standard Height (from floor) |
|---|---|
| Electrical Outlet (Receptacle) | 12–16 inches |
| Light Switch | 46–48 inches |

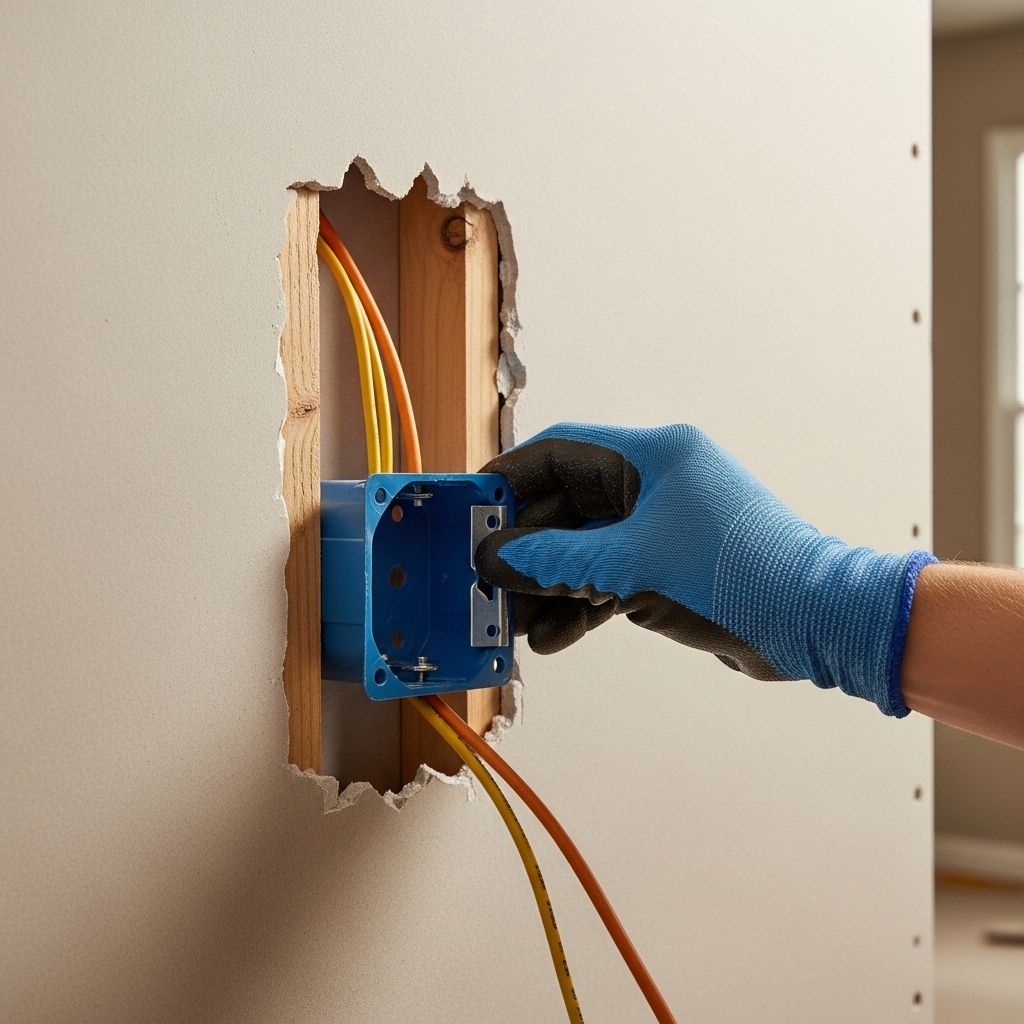

Step 5: Installing the Electrical Box
With the hole cut and cable fished to the location, it’s time to set the box:
- Knock out a cable entry port on your old-work box.
- Slide the box into the hole, feeding the wire through.
- Use a screwdriver to tighten the integrated clamps or tabs. These should pivot or screw outward, sandwiching the drywall or plaster to lock the box firmly in place. Confirm the box is flush with the wall surface and not tilted.
Step 6: Wire and Install the Device
Connect your new outlet or switch following these general wiring guidelines:
- Strip insulation from the ends of the wires—generally 3/4 inch for outlets and switches.
- Connect the ground wire (bare copper or green) to the green grounding screw on the outlet or switch.
- Attach the white (neutral) wire to the silver-colored terminal and the black (hot) wire to the brass or gold terminal.
- If your device supports back-wiring, follow the manufacturer’s instructions. Many commercial-grade outlets allow for secure push-in wiring as a time-saving and reliable connection.
- Carefully fold the wires into the box, mount your outlet or switch, then finish with a cover plate.
Tip: When installing multiple outlets, keep the orientation and cover plate screw alignment consistent throughout your room for a professional finish.
Step 7: Restoring Power and Testing
- Once the device and cover plate are securely mounted, restore power at your circuit breaker.
- Use a voltage tester or receptacle tester to ensure your new box is wired correctly and functioning as intended.
- Confirm both the new and existing outlets are operational.
If you encounter problems (outlet doesn’t work, tripped breaker, etc.), double-check your wire connections and test with all appropriate safety precautions.
Frequently Asked Questions (FAQs)
Can I install an old-work electrical box in plaster walls?
Yes. Many old-work boxes are suitable for plaster as well as drywall. Boxes with adjustable metal tabs can grip thicker or more brittle walls. Always select a box rated for your wall material.
How do I avoid cutting into obstacles inside the wall?
Use a stud finder to check for studs, pipes, or existing wiring before making cuts. When in doubt, cut a small inspection hole or use a borescope camera to scout behind the wall.
What’s the difference between new-work and old-work boxes?
New-work boxes are installed before drywall goes up and are fastened directly to studs. Old-work (remodeling) boxes are added after walls are finished and clamp to the wallboard.
Do I need a permit for adding an electrical box?
Depending on your location, adding a new outlet or circuit may require a permit or inspection. Always check your local codes before beginning electrical work.
Is it safe to do this job myself?
Installing an old-work box is a common DIY project. If you’re comfortable with basic wiring and follow safety protocols, it’s safe. However, if you’re uncertain, consult or hire a licensed electrician.
Troubleshooting Common Installation Issues
- Box doesn’t fit tight: Ensure your opening is not oversized and the box clamps are properly engaged. Some boxes allow for slightly out-of-square openings but may require adjustment for a snug fit.
- No room for cable or device: Use a deeper box to accommodate more wires and devices, ensuring you meet code requirements for fill capacity.
- Device won’t power on: Re-check wire connections, ensure all wires are stripped adequately, and test for continuity. Confirm the breaker is on and test with a known working device.
- Wall damage from cutting: Use painter’s tape to mark your cut line and support fragile wall surfaces. Cut slowly and carefully.
Safety Warnings and Best Practices
- Always turn off power at the panel before beginning work. Double-check with a tester.
- Use only boxes and wiring rated for your application.
- Don’t exceed box fill capacity: Too many wires in one box can be a code violation and fire hazard.
- Follow all national and local electrical codes. When in doubt, consult a licensed electrician.
Conclusion: Power Up Your Space With Confidence
Adding an electrical box to a finished wall can feel intimidating, but with careful planning, logical step-by-step execution, and proper safety checks, it’s well within reach for most DIYers. Whether installing an outlet for convenience, a switch for a new light, or upgrading room functionality, you can accomplish a tidy, code-compliant solution using remodeling boxes and modern wiring techniques.
Remember: measure twice, cut once, test all connections, and always put safety first. Your home—and its future residents—will thank you!
