How to Install an Electrical Box in a Finished Wall
Accurate cuts and secure fittings pave the way for reliable wiring and safe power access.
Adding a new outlet, switch, or fixture to an already finished wall is a common home improvement project. Whether you want better access to power or are remodeling a room, installing an electrical box (also known as an old-work or remodeling box) in drywall can be completed in a few hours with the right tools and careful attention to safety codes and procedures. This guide provides clear, step-by-step directions to help you install an electrical box in a finished wall professionally and safely.
Why Install an Electrical Box in a Finished Wall?
Modern homes demand flexibility and convenience in electrical access. Adding outlets or switches exactly where you need them can:
- Reduce reliance on extension cords and power strips.
- Improve room aesthetics and functionality.
- Support new electronics, appliances, and smart devices.
- Enhance safety by providing grounded, code-compliant outlets.
This guide focuses on retrofitting old-work electrical boxes into existing drywall, minimizing mess and drywall damage.
What You Need: Tools and Materials
- Old-work (remodeling) electrical box
- Stud finder (magnetic or electronic)
- Drill and spade bit or flexible drill bit (for wiring, if needed)
- Wire stripper/cutter
- Non-contact voltage tester
- Utility knife or drywall saw
- Level and tape measure
- Fish tape (for pulling wires through walls)
- Electrical cable (matching gauge/type of existing circuit, usually 12/2 or 14/2 NM-B)
- Outlet, switch, or other desired device
- Wire connectors (e.g., wire nuts or Wago lever nuts)
- Electrical tape
- Faceplate or cover
Preparation and Safety
Safety should be your top priority whenever working with electrical components. Take the following precautions:
- Always turn off power to the circuit at the main service panel. Confirm with a non-contact voltage tester before touching any wires.
- Familiarize yourself with local building codes – some areas require permits for new outlets or modifications.
- Wear safety glasses and use proper ladder safety if working above floor level.
- Gather all tools and materials before starting to avoid unnecessary trips and interruptions.
Step 1: Plan Location and Route
Find the right spot for your new electrical box. Consider both convenience and code requirements, such as not placing outlets too close to sinks or in areas prone to moisture without using GFCI protection.
- Use a stud finder to locate wall studs and fasteners. Most outlets are installed between studs, which are typically 16 inches on center.
- Mark the planned box location with a pencil. Use a level to ensure your mark is straight. Avoid locations blocked by studs, plumbing, or other obstructions.
- If you intend to connect the new box to an existing circuit (e.g., outlet or light switch), confirm both are on the same branch and have adequate capacity for additional load.
Step 2: Trace and Cut Hole in Drywall
Old-work/remodeling boxes have built-in wings or clamps that secure to the back of the drywall without requiring access to wall framing.

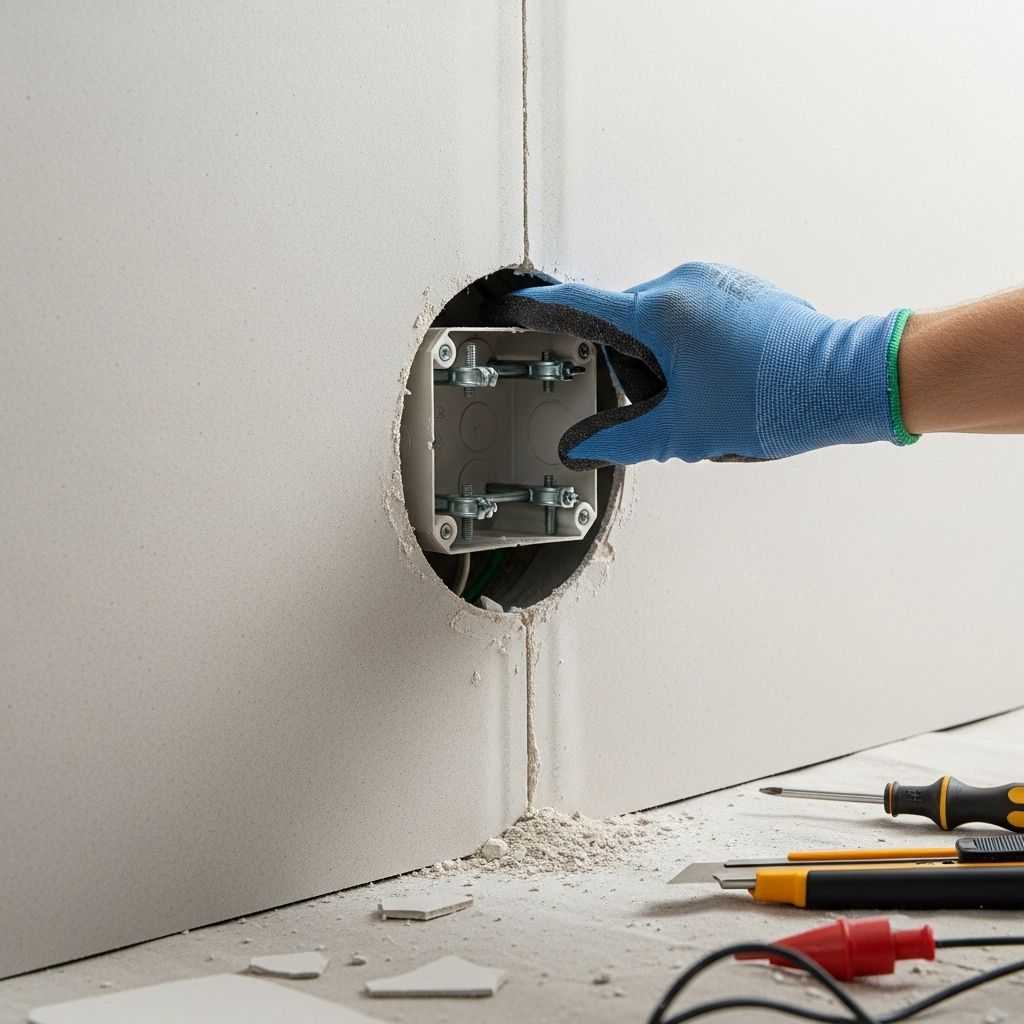

- Hold the electrical box against the wall at your marked location. Trace around it to outline the hole.
- Double-check the placement for level and fit.
- Protect the surrounding area with painter’s tape if desired. Cut along your outline with a drywall saw or utility knife, taking care not to oversize the opening or nick wires and pipes hidden behind the wall.
Tip: For professional results, measure the box depth and choose a location clear of insulation, studs, and obstructions.
Step 3: Run Electrical Cable
Your new box needs power, grounded and properly protected. The simplest approach is tapping into an existing nearby outlet, switch, or junction box. If running a new circuit from the panel or across multiple rooms, consider consulting a professional electrician.
- Turn off circuit power. Use a voltage tester to confirm.
- Route the new cable through the wall cavity. This may require drilling through the bottom plate (in the basement or crawl space) or the top plate (in the attic).
- Fish tape or flexible drill bits can help navigate cable past obstacles in finished walls.
- Ensure the cable matches the gauge/type of the existing circuit (typically 14/2 NM-B for 15A or 12/2 for 20A circuits).
- Secure the cable with staples within 12 inches of the box (when possible) as required by code.
What others are reading
Important: Never overload a circuit or make splices behind walls or in concealed spaces.
Step 4: Install the Electrical Box
- Insert the cable through a knockout or cable clamp in the box. Some boxes require you to open a tab or remove a plastic slug.

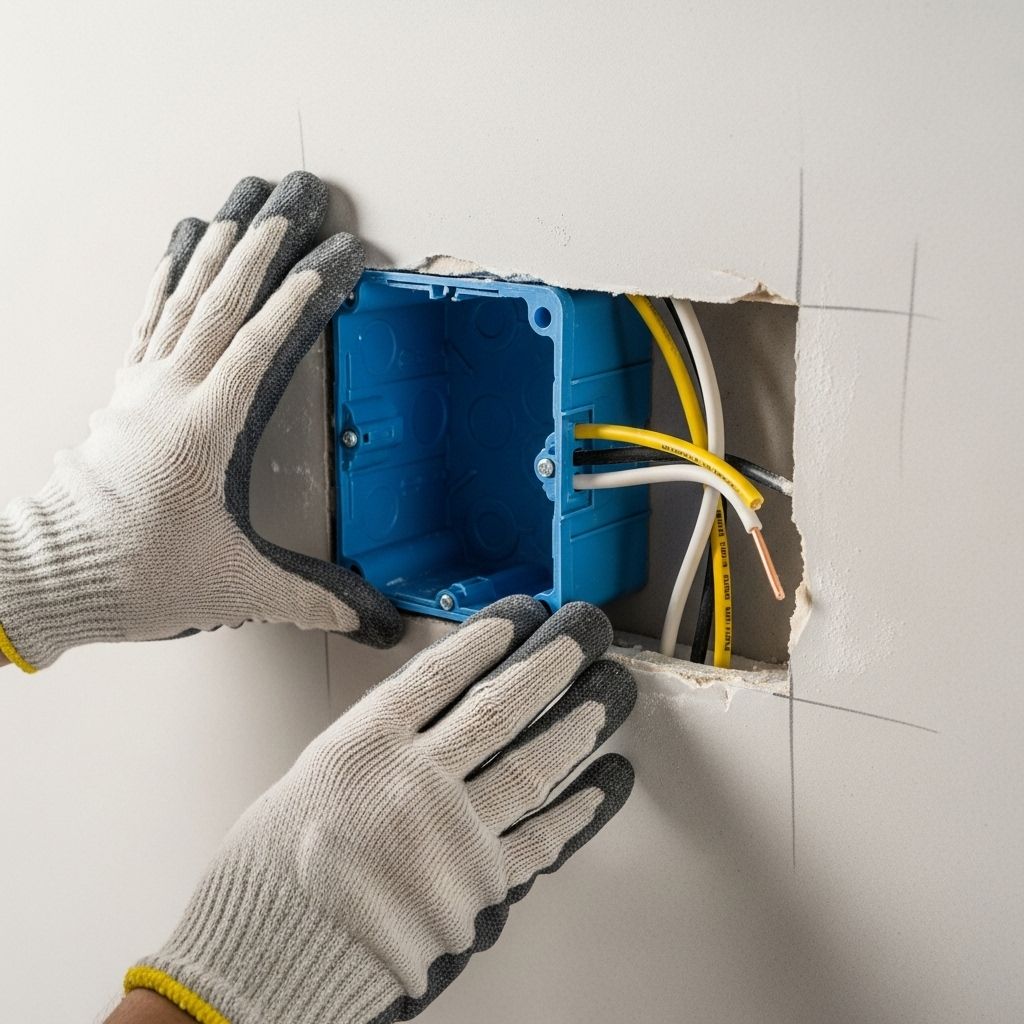

- Gently push the box into the wall cavity. Tighten the securing screws or flip the wings/clamps until the box is firmly attached to the drywall. Do not overtighten, as this can crack the wallboard.
- The front flange of the box should sit flush with the wall surface.
Select a box size appropriate for the number of conductors and device(s) to prevent overcrowding (refer to box fill capacity guidelines).
Step 5: Wire the Outlet or Switch
- Strip about 6–8 inches of the jacket from the end of the cable. Strip 3/4-inch insulation from each wire inside.
- Connect the ground wire to the green grounding screw on the outlet or switch. Secure with a clockwise J-hook turn of the wire.
- Connect the neutral (white) wire to the silver terminal, and the hot (black) wire to the brass terminal. Use pigtails and wire connectors if necessary, especially when multiple cables enter the box.
- Neatly fold the wires into the box, ensuring there is no bare copper exposed outside of terminals or connectors.
- Mount the outlet or switch to the box with the provided screws.
Pro Tip: Use back-wiring (where allowed) or lever-type wire connectors for secure, reliable connections in tight spaces.
Step 6: Test and Finish
- Restore power at the panel.
- Use a voltage tester on the new and existing outlets to confirm correct wiring and functionality.
- If everything operates correctly, screw on the faceplate, making sure the outlet is straight and flush with the wall.
For any signs of incorrect wiring (hot/neutral reversed, open ground, etc.), turn off the power and correct the issue before using the outlet.
Tips for Success
- Label the circuit at the electrical panel for future reference.
- Take photos of in-wall wiring before closing up to document placement for any future repairs.
- Don’t hesitate to call an electrician for complex wiring scenarios or if you run into unexpected obstacles.
- Use commercial-grade outlets and boxes for improved durability and safety.
- Always check for local code updates regarding tamper-resistant and arc-fault circuit interrupter requirements.
Common Mistakes to Avoid
- Failing to turn off the power or verify de-energized circuits.
- Forcing too many wires into a box (violating box fill code).
- Not using a wire connector or pigtail for multiple wires.
- Installing boxes that are too loose or protrude beyond the wall surface.
- Cutting drywall too large so the box can’t mount securely.
Table: Comparison of Electrical Box Types
| Box Type | Application | Installation Time | Securement |
|---|---|---|---|
| Old-Work (Remodeling) Box | Finished (existing) walls | Short (1–2 hrs) | Drywall clamps/wings |
| New-Work Box | Open stud wall, before drywall | Short (prior to wall finishing) | Nails or screws to stud |
| Metal Box | Commercial/high-demand | Varies | Screws or adjustable clamps |
Frequently Asked Questions (FAQs)
Q: Do I need a permit to install an outlet or box?
A: In many municipalities, adding electrical outlets or switches requires a permit and inspection. Always check with your local building authority before beginning any electrical work.
Q: Can I run power from any outlet or switch?
A: Power can be sourced from existing outlets or switches on the same circuit, provided you do not overload the circuit and use appropriate wire gauge and connectors. Bathrooms, kitchens, and laundry areas may have dedicated circuits and special code requirements; avoid tapping these for general-use outlets.
Q: How do I know if the power is off?
A: Always use a non-contact voltage tester at the work site and on each wire to confirm no power is present before starting any wiring work.
Q: What if I hit a stud or pipe while cutting?
A: Stop immediately. Relocate the box to avoid damaging structural elements, and repair any damage before continuing. Consult a professional if necessary.
Q: Is it safe to use back-stab or push-in wire connections?
A: While legal, back-stab connections can loosen over time. For the most secure connection, use terminal screws or high-quality lever wire connectors whenever possible.
Additional Resources
- Check major home improvement centers and manufacturer guides for box fill tables and product specifications.
- Watch step-by-step video tutorials for visual learners.
- Consult the National Electrical Code (NEC) for the latest requirements.
Final Thoughts
Installing an electrical box in a finished wall is a manageable DIY task when approached with careful planning and attention to safety and code requirements. With patience, the proper tools, and an understanding of electrical basics, you can add functionality and value to your space without extensive remodeling. For complex electrical scopes or if you’re ever uncertain, always engage a licensed electrician.
