How to Repair Brick and Block Walls: Expert Techniques & Step-by-Step Guide
Restore strength and beauty while preventing future damage to your masonry surfaces.
How to Repair Brick and Block Walls: Step-by-Step Solutions
Brick and block walls are valued for their durability, strength, and timeless appearance, but over time, even the most well-constructed walls can suffer from cracks, crumbling mortar, or other signs of stress. Timely repairs not only restore beauty but prevent more costly future damage. This guide walks you through contemporary methods for repairing brick and block walls, addressing cracks, repointing joints, using specialized mortars, and maintaining the integrity of your masonry structures.
Understanding Common Problems in Brick and Block Walls
Masonry walls can develop several issues over time due to natural aging, settling, water damage, or improper maintenance. The most frequent problems include:
- Cracked bricks or blocks: Due to settling, structural movement, or external impacts.
- Crumbling or missing mortar: Typically caused by weathering or water infiltration.
- Large gaps or voids: Often arise in older walls, allowing pests or water to enter.
- Efflorescence: A white, powdery deposit from salt migration in water.
- Spalling: Flaking or peeling of the brick or block face, commonly from freeze-thaw cycles.
Each of these issues affects the wall’s stability and appearance. Early detection and prompt repairs are critical for extending the lifespan of your masonry.
Essential Tools and Materials Needed
Before starting any repair project, collect the necessary tools and materials to ensure efficient and lasting results:
- Cold chisel and sledgehammer
- Brick chisel (for widening cracks)
- Wire brush
- Pointing or brick trowel
- Mortar jointer or metal rod (bent for shaping joints)
- Garden hose or spray bottle (for cleaning and curing)
- Mortar mix or grout
- Mortar coloring (to match existing mortar)
- Epoxy or polyurethane injection kit (for crack injection)
- Wide-mouthed funnel and rubber tubing (for deep crack filling)
- Protective gear: safety goggles, gloves, dust mask
- Duct tape (for masking during grouting)
Step-by-Step Guide to Repairing Cracks in Brick or Block Walls
1. Clean and Prepare the Damaged Area
Start by removing all loose or crumbling mortar and broken brick or block fragments from the affected area. Use a cold chisel and sledgehammer for larger debris, and a wire brush to clean out smaller particles. For cracks that go through bricks or blocks, angle the chisel to undercut and widen the break slightly, which helps fresh material bond better.
Flush the crack thoroughly with water to eliminate dust and lingering debris. This step ensures the repair material will adhere and set correctly.
2. Prepare Matching Mortar
Mix a small batch of fresh mortar according to the manufacturer’s instructions. If you need an exact color match (especially important on visible, finished surfaces), test the new mortar on a scrap of cardboard and compare it to the existing joints. Adjust with mortar coloring as needed. Once a good match is achieved, mix enough mortar for the repair, maintaining consistent proportions to ensure uniform coloring.
3. Fill Shallow Cracks with Mortar
Using a small, sharp trowel, force the mortar into the full depth of the crack or joint. Treat the crack as a continuous joint—ensure it’s packed tightly and no air pockets remain. For best results, slightly moisten the cracked area just before applying the mortar to prevent rapid drying.
Use a mortar jointer to finish and shape the surface, matching the existing joint profile or brick/block face. Allow the patch to cure for at least one week. Lightly mist the repair area several times a day during the curing period to enhance strength and prevent shrinkage cracks.
What others are reading
4. Fill Deep or Wide Cracks with Grout
For deeper or wider cracks, prepare a thin grout mixture consisting of 1 part Portland cement, 1 part hydrated lime, and 6 parts sand, with enough water to create a pourable slurry. Add coloring if needed to match the mortar.
- Lightly dampen the interior of the crack.
- Mask the lower part of the crack with duct tape set flat on the surface. Press a board firmly against the wall to hold the tape in place and wedge it upright using a 2×4.
- Pour grout into the crack using a funnel and rubber tubing, inserting the tubing as deep as possible. Pour slowly to allow the grout to fill from the bottom up and minimize air pockets. You may need a helper for this process.
- Allow the filled crack to set for about one day, then remove the tape and board, and use a mortar jointer or bent metal rod to tool the surface, matching existing joint or surface textures. Repeat grouting and finishing as needed until the crack is filled to the surface.
- After the final application, let the repair cure for at least a week, misting frequently to aid in proper setting.
5. Final Touches: Painting or Sealing
If your wall is painted, touch up the fully cured and finished repair area with matching exterior paint. For bare brick surfaces, use a cement paint that matches the surrounding wall color. Thin the paint slightly for subtle blending, and carefully apply it to the repaired section, repeating as needed for a seamless finish.

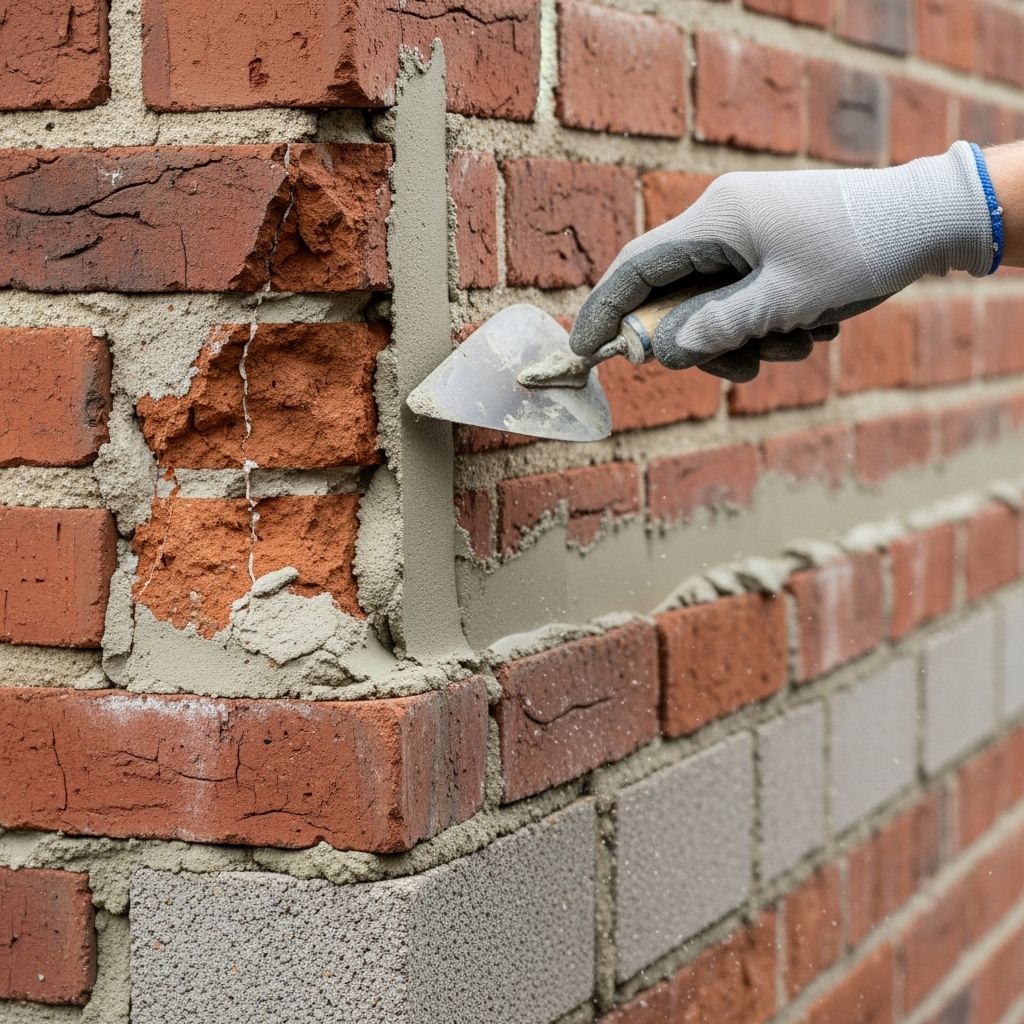

Repointing Mortar Joints: Renewing Structural Integrity
Repointing is the process of removing and replacing deteriorated mortar in the joints between bricks or blocks. It’s essential for both structural soundness and visual appeal, especially in historic or older homes.
Steps to Repoint Mortar Joints
- Assess the damage: Identify loose, cracked, or missing mortar throughout the wall.
- Remove old mortar: Use chisels, grinders, or specialized tools to carefully extract damaged mortar to a depth of 2 to 2.5 times the joint width—this depth ensures a solid bond for the new mortar.
- Clean the joints: Brush out dust and debris, then lightly mist the joints with water.
- Apply new mortar: Fill the joint with fresh mortar using a pointing trowel or mortar bag, pressing it firmly into the space to eliminate voids.
- Tool the joint: Shape the wet mortar to match the original joint profile using a jointer.
- Allow proper curing: Mist the joint frequently as it cures for at least a week.
Consistent use of appropriate mortar mixes (e.g., compatible with the original mortar in older walls) is crucial for structural and visual compatibility.
Crack Injection: Advanced Repairs for Structural Cracks
Crack injection is a modern masonry repair technique typically used for larger, deeper cracks where traditional mortar or grout would not provide adequate strength. This method utilizes epoxy or polyurethane resins that penetrate and seal the crack, restoring both appearance and structural integrity.
- Inspection: Thoroughly examine the wall to assess which cracks are candidates for injection. Structural cracks are often wider than hairline and may leak water or show shifting.
- Preparation: Clean the area thoroughly. Install injection ports along the length of the crack if using a multi-port system.
- Resin application: Using a low-viscosity epoxy or polyurethane injection kit, apply the resin into the crack. The material is forced deep into the voids, bonding internal surfaces.
- Finishing: Once the resin cures, remove the injection ports and trim any excess material. The area can then be painted or coated as needed to match the rest of the wall.
This advanced technique not only restores strength but also prevents water infiltration, a common cause of ongoing deterioration in brick and block structures.
Choosing the Right Mortar for Long-lasting Repairs
Not all mortar mixes are alike. The success of your repair depends in part on using the right type of mortar, especially when working with historic masonry or specific block types:
- Modern mortars: Formulated for different strengths, flexibilities, and weather-resistance. Use softer mortars for older historic brick, avoiding hard Portland cement where possible to prevent damaging original masonry.
- Mortar coloring additives: Help replicate existing color, minimizing visible contrast in repairs.
- Pre-blended restoration mortars: Available for specialized conservation work.
Expert Tips for Successful Brick and Block Wall Repairs
- Always wear safety equipment: Protect eyes, hands, and lungs from masonry dust and debris;
- Work in cool, moist conditions: Prevents premature drying of mortar and ensures maximum strength;
- Remove dust and debris completely before applying fresh mortar or grout—clean surfaces bond much better;
- Moisten the repair area lightly before filling cracks—this prevents the wall from absorbing moisture too quickly and causing the mortar to dry too fast and crack;
- Match the texture and color: Take time with coloring and tool contours to blend the repair seamlessly with the existing wall;
- Allow adequate curing time: Rushing the process can lead to weak or cracked repairs.
Preventing Future Damage to Brick and Block Walls
After completing repairs, implement these maintenance strategies to prolong the lifespan of your walls:
- Regularly inspect masonry for new cracks, mortar loss, or moisture intrusion.
- Direct water away from walls using proper grading, downspouts, and flashing.
- Seal any vulnerable areas (such as window sills or base courses) to minimize water entry.
- Avoid using harsh pressure washers, which can erode mortar and brick faces.
Frequently Asked Questions (FAQs)
Q: How do I know if a crack in my brick wall is structural?
A: Structural cracks are typically wider than hairline, may follow a stepped pattern, or appear near points of significant stress (such as corners or foundation lines). If in doubt, consult a licensed mason or structural engineer.
Q: Can I match the original color and texture of my wall?
A: Yes, with careful use of mortar coloring and by replicating the original joint tooling, most repairs can be made virtually invisible. Test colors on scraps before doing major sections.
Q: How long should I allow mortar or grout to cure?
A: For best results, allow repairs to cure for at least one week, misting the area several times a day to retain moisture and prevent premature drying.
Q: What are the signs I need to repoint my brick wall?
A: Loose, powdery, or missing mortar in joints, and bricks that move or sound hollow when tapped, indicate it’s time for repointing.
Q: When should I use crack injection versus traditional mortar repair?
A: Use epoxy or polyurethane crack injection for wide, deep, or structural cracks where standard mortar will not restore full stability. Mortar repair is suitable for shallow, thin, or cosmetic cracks.
Summary Table: Repair Techniques for Brick and Block Walls
| Repair Method | Best For | Main Materials | Key Tools |
|---|---|---|---|
| Mortar Patch | Surface cracks, missing/loose mortar | Mortar mix, color additive | Trowel, jointer, brush |
| Grout Filling | Wide/deep cracks | Portland cement, hydrated lime, sand, colorant | Funnel, tubing, trowel, jointer |
| Repointing | Deteriorated joints | Matching mortar, hand tools | Chisel, grinder, pointing trowel, jointer |
| Crack Injection | Structural cracks | Epoxy or polyurethane resin | Injection kit, ports, trowel |
Conclusion
Brick and block wall repairs are essential DIY skills for any homeowner or preservationist. By following these expert-step procedures—whether patching cracks, repointing joints, or using modern injection methods—you can extend the life and beauty of your masonry structures for decades to come.
