How to Install an Air Admittance Valve: Step-by-Step Guide

An air admittance valve (AAV) provides an effective solution for venting drainpipes, especially in locations where running a traditional vent through the roof or wall is impractical. This step-by-step guide will walk you through understanding, planning, and executing the installation of an air admittance valve, ensuring a safe and code-compliant result for your plumbing system.

What Is an Air Admittance Valve?

An air admittance valve is a one-way mechanical valve that automatically allows air to enter the plumbing vent pipe when negative pressure develops, such as when water flows down a drain. This equalizes pressure, preventing sewer gases from entering living spaces while enabling efficient drainage. AAVs are commonly called Studor vents (after a popular brand), but multiple manufacturers offer similar products.

Why Use an Air Admittance Valve?

• Saves labor and costs by eliminating the need for long vent pipe runs, especially through roofs or exterior walls.
• Ideal for remodels or additions where adding conventional vents is not practical.
• Approved by code in many regions when specific guidelines are followed (always check local plumbing codes before installation).

How Does an Air Admittance Valve Work?

When a fixture (like a sink) is used, water flowing down the drain creates negative pressure in the pipe. The AAV’s spring-loaded diaphragm opens to admit air, breaking the vacuum and ensuring proper flow. When not in use, the diaphragm closes tightly, preventing sewer gases from passing into the home. This makes AAVs an efficient alternative to conventional vent pipes, but proper installation is crucial to avoid leaks or malfunctioning valves.

Is an Air Admittance Valve Right for Your Project?

Planning Your Air Admittance Valve Installation

Before purchasing any materials, carefully check your local plumbing code for AAV approval and restrictions. While AAVs are recognized in the International Residential Code (IRC) and by ANSI/ASSE 1051 and 1050 standards, individual municipalities may have additional or stricter requirements.

Where Should the Valve Be Installed?

• Must be installed in a vertical, upright position (max 15 degrees off plumb).
• At least 4 inches (10 cm) above the horizontal drain or branch being vented.
• Accessible for inspection, maintenance, or replacement (cannot be hidden behind permanent walls).
• Should be located in an air-accessible space, not within solid insulation or sealed wall cavities. If in a wall, use a vent access grill or box.
• At least 6 inches above insulation materials if installed in attics or spaces with insulation.

What Tools and Materials Will You Need?

• Approved air admittance valve (sized appropriately for fixture unit load)
• PVC or ABS adapter fitting for connecting the AAV
• Pipe cutter or hacksaw for cutting the drainpipe
• Deburring tool or utility knife
• PVC or ABS primer and cement (for solvent weld connections); or appropriate compression fittings
• Teflon tape (for threaded AAVs)
• Measuring tape, marker
• Protective gloves, safety glasses

Step-by-Step Guide: Installing an Air Admittance Valve

1. Confirm Local Code Compliance

   Consult your jurisdiction’s code or speak to the building department to confirm air admittance valves are allowed for your application.

   Related: How to Run Pipes Through Walls and Floors: A Complete Guide
2. Plan the Installation

   Identify the best spot for your AAV—generally above the trap of the fixture (such as a sink) and with adequate clearance for air flow and access. Mark the pipe where you’ll add the valve.

3. Turn Off Water and Prepare the Site

   For kitchen or bathroom sinks, clear the cabinet and place a bucket under the drain. Turn off any running water connected to the fixture.

4. Cut and Remove the Section of Pipe

   Use a pipe cutter or hacksaw to remove the section of drainpipe where you’ll install the tee and adapter for the AAV. Deburr the cut edges carefully with a deburring tool or utility knife.

   Related: How to Connect New Pipes to Old Lines: A Step-by-Step Guide
5. Dry Fit the New Components

   Assemble the branch tee and AAV adapter dry to check alignment and height. Ensure the AAV will sit at least 4 inches above the highest horizontal branch being vented.

6. Install the PVC/ABS Tee and Adapter

   If using solvent weld fittings:
   – Prime and cement the connections according to manufacturer’s instructions, making sure not to allow excess cement to contact the AAV’s internals.
   If using mechanical compression fittings, follow product instructions.

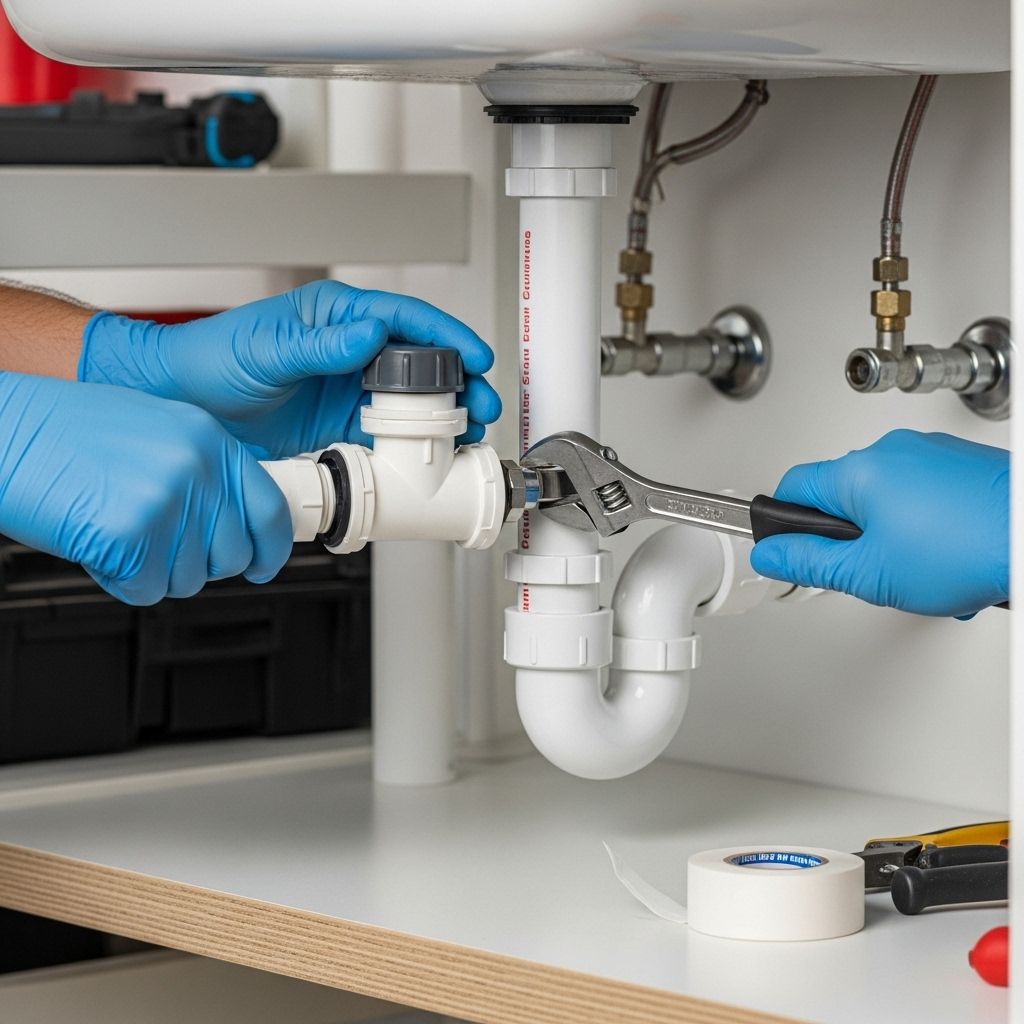

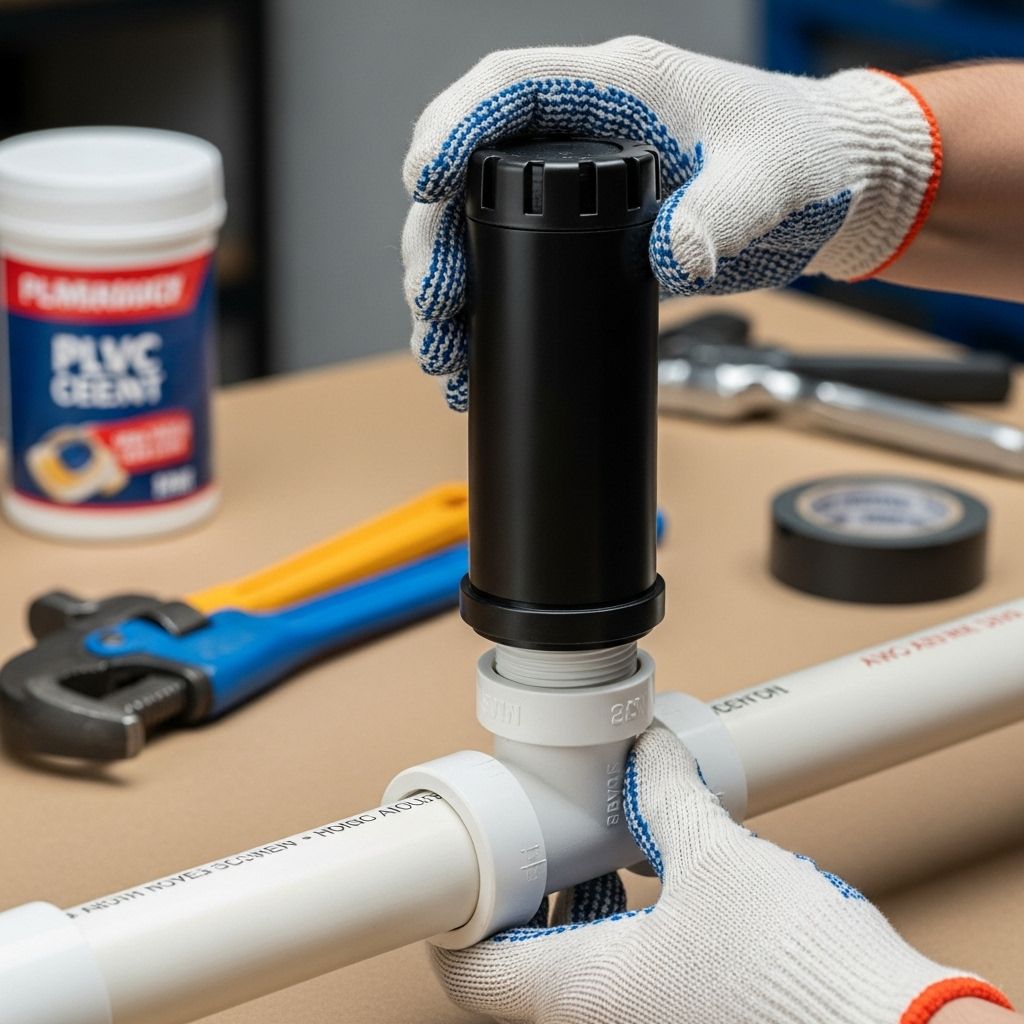

7. Attach the Air Admittance Valve

   Wrap the valve’s male threads with Teflon tape (if required by valve design). Screw the valve into the adapter hand-tight (do not use pipe dope). Ensure the AAV is installed vertically and accessible for future maintenance.

8. Check the Installation
   • Ensure the valve is not exposed to freezing or direct weather unless fully rated and protected (some models have outdoor covers).
   • All connections should be secure and sealed.
9. Test for Leaks

   Turn on the water supply and run the fixture, observing the AAV installation for any leaks. Fill and drain the sink or fixture to ensure the valve admits air and that drainage is smooth. If leaks occur, retighten fittings or recut and reseal as needed.

Troubleshooting and Maintenance

• Slow draining or gurgling: The AAV may be stuck or incorrectly installed.
• Sewer odors in living space: The valve may be faulty or misaligned and allowing air backflow.
• Leaking valve: Check that all joints are sealed and not cross-threaded; replace damaged AAVs.
• Always keep the valve accessible for easy future replacement, as it is a mechanical device subject to wear.

Safety and Installation Tips

• Do not use pipe dope on AAV threads; use Teflon tape as specified.
• Install the valve in upright position, maximum 15° deviation from vertical.
• Never bury an AAV in insulation or seal it behind a finished wall unless you install a vent access grill for serviceability.
• Protect outdoor AAVs with manufacturer-recommended covers.
• If installing under a kitchen sink, ensure dishwasher or garbage disposal drain hoses are routed correctly and that high loops are maintained.

Types of Air Admittance Valves

• Mini-Vent: Designed for individual fixtures (e.g., sink or vanity), typically fits 1 1/2-inch or 2-inch pipe.
• Maxi-Vent: Handles larger fixture groups or higher Drainage Fixture Unit (DFU) loads. Suitable for stack venting (not whole-house main stacks).
• Redi-Vent, Tec-Vent: Specialized or brand-specific models for unique applications, with various pipe size compatibilities.

Frequently Asked Questions (FAQs)

Q: Are air admittance valves legal everywhere?

A: No. While widely permitted, some municipalities restrict AAVs to certain applications or prohibit them entirely. Always confirm with your local building code.

Q: How long do air admittance valves last?

A: Most AAVs are designed to last at least 20 years, but as mechanical devices, they can fail sooner, especially if exposed to harsh conditions or chemicals. Replace immediately if performance drops.

Q: Can I install an AAV to replace an existing roof vent?

A: An AAV can be used in place of branch vents in many cases, but at least one vent in the system must extend to the outside (roof) for positive pressure relief. Do not replace all roof vents with AAVs.

Q: Can AAVs be painted or covered?

A: Do not paint or permanently cover an AAV. They must remain accessible and unobstructed for operation and inspection.

Q: Is special maintenance required?

A: Routine maintenance is usually not needed unless malfunction occurs. Ensure accessibility for periodic checks during other plumbing inspections.

Summary Table: Key Requirements for AAV Installation

Final Thoughts

Air admittance valves offer a practical, efficient way to provide venting for residential plumbing fixtures, helping homeowners save time and money on complex retrofits. With careful planning, accurate measuring, and proper code compliance, installing an AAV can be a straightforward DIY project that significantly improves your plumbing system’s performance. Always use manufacturer instructions and seek professional guidance if you are unsure about your project.
