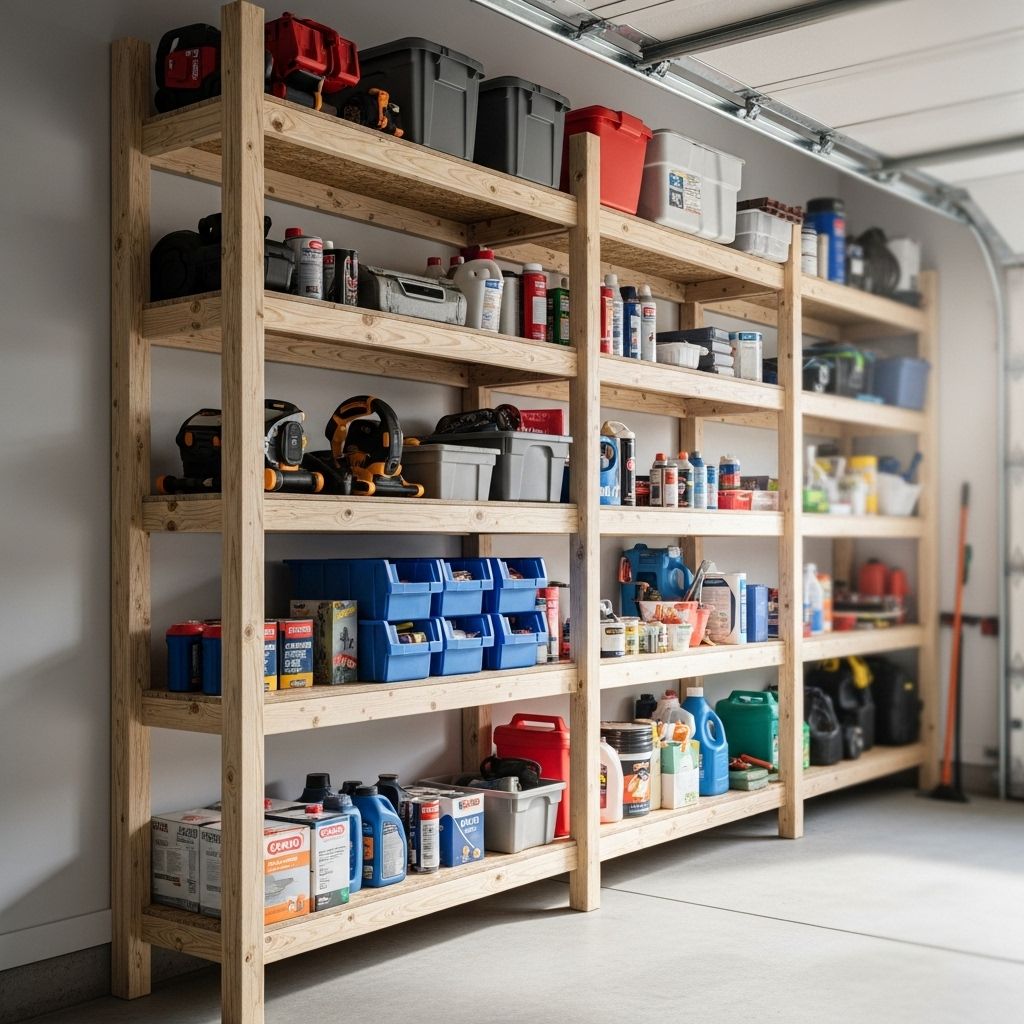

The Ultimate DIY Guide: How to Build Super Sturdy Garage Shelving

How to Build Super Sturdy Garage Shelving: The Complete DIY Guide

Looking for a game-changing way to organize your garage or shed? Building your own garage shelving can be surprisingly simple, deeply rewarding, and most importantly—customized to your exact needs. This guide will take you through every step, from planning to the finishing touches, ensuring your new shelves are strong enough for heavy tools, bins, and anything else your garage holds. Let’s dive in!

Why DIY Garage Shelves?

Store-bought metal or plastic shelves are often pricey and prone to wobbling or sagging. With just a few materials—mainly 2×4 boards and plywood—you can create shelves that:

• Support heavy weight without sagging
• Fit your unique space and needs
• Stay perfectly level and square
• Save you money compared to premade units

Let’s look at the process and tips for a flawless build.

DIY Garage Shelves Tutorial: Step-by-Step

• Step 1: Cut Pairs of 2×4 Shelf Supports
• Step 2: Hang One 2×4 from Each Pair
• Step 3: Temporarily Attach the Second 2×4
• Step 4: Add Vertical Support Legs
• Step 5: Remove Temporary Screws and Secure Permanently
• Step 6: Add Side Supports and Frame
• Step 7: Nail On Plywood Shelf Tops

Step 1: Cut Pairs of 2×4 Shelf Supports

Begin by measuring the length of the shelves you want. Cut pairs of 2×4 boards to serve as your front and back horizontal shelf supports. Each shelf will need a pair for the front and a pair for the back—make sure they’re the same length for a truly straight, level shelf!

Step 2: Hang One 2×4 from Each Pair

Decide how high you want the lowest shelf to sit. Using a stud finder, locate and mark the wall studs. Secure the first 2×4 of each pair horizontally onto the wall, aligning with the studs for maximum strength. Use a level to keep it perfectly straight before screwing it in place. This board will anchor each shelf and take most of the load.

Step 3: Temporarily Attach the Second 2×4

On the ground, line up the matching 2×4 with the installed board. Temporarily screw the second 2×4 to the first, keeping the ends flush. This creates a straight “jig” that maintains even spacing for the next steps and helps ensure your shelves turn out square.

Step 4: Add Vertical Support Legs

Mark and cut 2×4s to serve as vertical legs, going from floor to the bottom of your shelf. Place one at each end and any intervals where extra support is needed (every 4-6 feet, or more if holding very heavy items). Attach each leg to the paired 2×4s with screws, checking that they’re plumb and level. This step is critical for stability.

Step 5: Remove Temporary Screws and Secure Permanently

With the legs in place, you can now remove your temporary screws. Reinforce all joints by screwing through the vertical legs into each 2×4. Make sure everything remains level and plumb—this is the skeleton of your shelf system!

Step 6: Add Side Supports and Frame

For side-to-side stability, cut several 2×4s to your desired shelf depth (usually 12–16 inches; don’t exceed 18 inches with standard plywood or you’ll risk sagging). Drill pocket holes using a jig or pre-drill through the ends, then secure these side pieces between the front and back rails. This locks your frame together and gives you a place to anchor the shelf top.

Step 7: Nail On Plywood Shelf Tops

Cut 3/4-inch plywood to fit each shelf frame. Once cut, set each piece on its frame and nail or screw down, spacing the fasteners about 8–12 inches apart. For a cleaner look and added durability, sand any rough edges. Take a step back and enjoy your sturdy, custom shelves!

Tips for Super Sturdy Shelves

• Always anchor to wall studs. This prevents tipping and supports the heaviest loads.
• Choose thick enough plywood. Use at least 3/4-inch for spans up to 18 inches; go thicker or add a center brace for deeper or longer shelves.
• Use long screws. 2.5 to 3-inch screws grip better than nails for all framing joins.
• Check for level and plumb with each step. Correct errors as you go to avoid crooked shelves.
• Don’t skip the side supports! They make the frame rigid and prevent racking.

Customizing Your Shelves for Any Space

One of the biggest advantages of building your own shelving is the ability to tailor dimensions. Consider:

• Shelf Height: Space shelves for the largest bins or items you’ll store.
• Shelf Depth: 12–15 inches works for most storage, but you can adjust for odd-sized spaces or specific items (e.g., window clearance).
• Number of Shelves: Build as many levels as your wall height allows, but leave room for taller tools or seasonal items.
• Expandable Design: The frame style allows you to add more shelves later by repeating the steps above.

When to Use Thicker Plywood or Extra Supports

If you want shelves deeper than 18 inches, consider using thicker plywood (at least 1 inch) or adding a mid-shelf 2×4 support running front-to-back. This will keep your shelves from sagging over time, especially under heavy loads.

Materials & Tools You’ll Need

Adapting the System for Sheds, Attics, or Basements

This technique works anywhere you need serious storage—sheds, attics, or basements. Simply follow the same framing principles, adjusting lengths and heights for the space. For corners or tricky nooks, you can miter the ends of the supports or use L-shaped bracketry for extra strength.

Other Storage Ideas and Inspiration

• Install pegboards above your shelves for hanging tools or supplies.
• Use labeled bins for paints, hardware, and seasonal gear.
• Combine built-in shelving with wall hooks, garden tool racks, or even drawers for ultimate organization.
• Paint or stain your shelf frames for a more polished look in finished spaces.
• Need more inspiration? Check out other DIY storage projects—from closet shelving systems to pantry shelves and hybrid built-ins for any room.

Conclusion: Enjoy Your Organized Garage!

With a weekend of work and some basic tools, you’ll have garage shelving that’s custom-fit, incredibly strong, and way more cost-effective than commercial options. Whether you’re storing bins, yard equipment, paint, or power tools, your new system will keep everything organized, safe, and easy to access. As you gain confidence, you can use this building method for pantries, closets, utility rooms, and beyond!

Frequently Asked Questions (FAQs)

How much weight can these DIY garage shelves hold?

Properly built and anchored to studs, these shelves can handle several hundred pounds per level—perfect for heavy bins, paint cans, and tools. For maximum weight, keep spans under 6 feet and add extra support legs as needed.

Can I make the shelves deeper?

Yes! Just don’t go much past 18 inches without using thicker plywood or adding a center support, or the shelf may eventually sag under heavy weight.

What’s the best wood for garage shelving?

2×4 framing lumber and 3/4-inch plywood are ideal. If your garage is damp, consider pressure-treated wood or sealed plywood for longevity.

Do I have to use a pocket hole jig?

No—it’s helpful for strong, hidden joints, but you can pre-drill standard screw holes through each joint end instead if you prefer.

Can I add adjustable shelves?

This method creates fixed shelves for maximum strength, but you can install separate metal track systems nearby for adjustable, lighter-duty shelving.

How long does it take to build these shelves?

Most people can complete a basic wall of shelving in a single weekend, including time for measuring, cutting, assembly, and finishing touches.

Ready for Your Next Project?

Once you see how transformative these shelves can be for your garage, you might find yourself eyeing other cluttered corners for a DIY upgrade. Shelving isn’t just for the garage—try applying these steps in the pantry, attic, or even your home office for custom organization solutions.
