Effective Patio Drainage Solutions: Installation, Maintenance, and Tips
Reliable water management safeguards foundations and keeps outdoor spaces free of damage.
Proper drainage is a foundation of outdoor living spaces, keeping patios dry, safe, and free of water damage. Whether your patio is concrete, paver, or stone, a well-designed drainage system is essential for maintaining its structural integrity and usability. This comprehensive guide explores key drainage methods, step-by-step installation processes, troubleshooting advice, and best practices for any homeowner or DIY enthusiast.
Why Is Patio Drainage Important?
Every patio is exposed to the elements. Without an effective drainage system in place, rainfall and runoff can accumulate on the surface or around the foundation, leading to:
- Erosion and settling of paving stones or concrete slabs
- Moss, mold, and mildew growth
- Water pooling and slip hazards
- Damage to adjacent structures or landscaping
- Increased pest activity like mosquitoes and gnats
Understanding how to provide drainage for your patio ensures longevity and comfort season after season.
Assessing Your Patio Drainage Needs
Before starting any project, evaluate your patio’s current drainage situation. Ask yourself:
- Is water pooling in certain areas after rain?
- Is the patio sloping away from the house (recommended), or towards it?
- Are nearby downspouts contributing excess water to the area?
- Is surface runoff managed by existing landscaping features?
Use a long level, string, and tape measure to determine how much slope exists across your patio. A general rule is a minimum fall of 1/8 inch per foot (roughly 1:80 slope) away from structures for effective water flow.
Main Drainage Solutions for Patios
There are several proven approaches to patio drainage, and often, a combination yields the best results. The main options include:
1. Surface Slope (Grading)
The simplest drainage solution is building your patio with a gentle slope that encourages water to flow away from your home:
- A slope of at least 1/4 inch per foot is recommended for concrete or stone patios.
- For paved patios, a similar gradient or slightly more is preferred if using porous materials.
- Use a straightedge, level, and shims to check and set the correct slope.
2. Permeable Pavers and Surfaces
Permeable paver systems let water drain directly through the joints and into a prepared subbase of gravel. This reduces runoff while filtering water back into the soil. Benefits include:
- Eco-friendly water management
- Reduced chances of pooling
- Minimalist appearance—no visible grates
Proper installation with graded sub-base and geotextile fabric is crucial for longevity and drainage effectiveness.

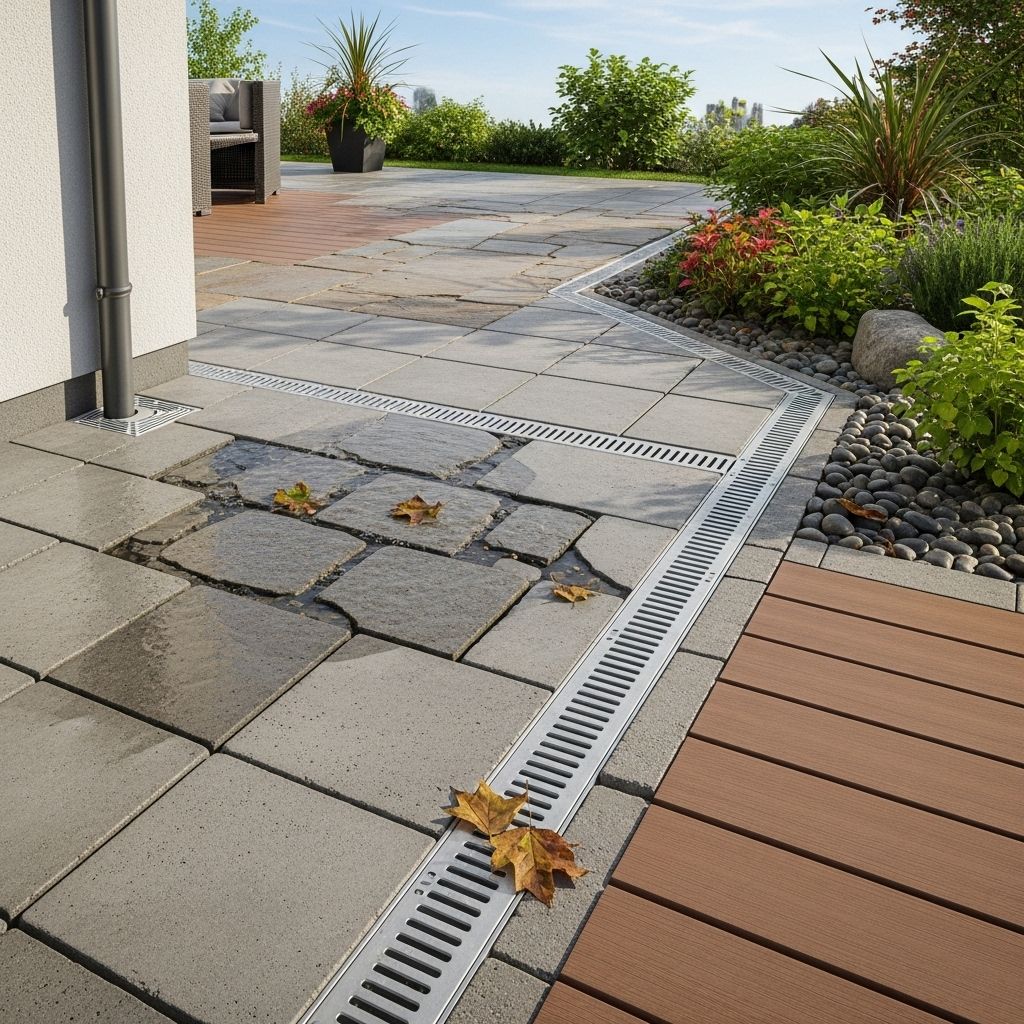

3. Channel or Linear Drains
Channel drains, also known as French drains or trench drains, are powerful tools for redirecting surface water away from patios and foundations. Their installation involves:
- Digging a trench parallel to the patio edge or at the lowest point
- Installing a pre-manufactured or custom concrete channel
- Fitting a metal or plastic grate over the channel to keep out debris
This method catches and carries away large volumes of water, perfect for areas with heavy rainfall or flat patio designs.
What others are reading
4. Slot Drains
Slot drains are minimalist linear drains with a narrow, continuous opening. They are flush with the patio surface and are especially effective in situations where style, safety, and performance are all priorities. Key points:
- Most often installed in concrete patios or pool decks
- Provide seamless water capture without trip hazards
- Require precise slope towards the slot for best results
5. Drainage Pipes and Dry Wells
For patios with large drainage needs or heavy runoff from downspouts, consider placing a system of buried perforated pipes that direct water into a dry well or gravel pit:
- Perforated drain pipe collects and disperses water underground
- Dry wells provide an underground reservoir for temporary water storage
- System outlets should be 10 feet or more from foundations or patios
6. Drainage Mats and Base Layers
Specialized drainage mats and free-draining gravel layers beneath the patio surface allow water to escape more readily, reducing freeze-thaw risks in cold climates.
Step-By-Step: Installing a Linear Channel Drain for Patios
One of the most popular and reliable drainage methods for patios is a linear channel (trench) drain system. Here is a detailed guide to installation:
Tools and Materials Needed
- Measuring tape
- Shovel or spade
- Length of wood (matching the run of your patio)
- Wooden pegs and nails
- Hammer
- Straightedge (1 meter or longer)
- 5mm shim
- Aggregate and cement
- Bucket or wheelbarrow
- Concrete float
- Spirit level
- Plastic or metal channel drain kit
- Waterproof sealant
- Dry mortar
- Metal or plastic grate
Installation Process
- Mark and Excavate: Measure and mark the drain placement at the lowest point of the patio (usually at the perimeter). Excavate a trench wide and deep enough for the drain channel, typically 4-5 inches across and up to several inches deep, depending on the product.
- Form and Set Grade: Place a length of wood at the furthest point and use pegs to outline the drain path. With a one-meter straightedge and 12.5mm shim, establish a precise 1:80 slope down the channel run to encourage drainage.
- Mix and Pour in Base: Mix four parts aggregate to one part cement, and pour into the bottom of the trench to make a stable base. Smooth with a concrete float.
- Place the Channel Drain: Lay the channel drain into the trench on the wet concrete base. Check alignment and slope with the spirit level. Ensure channels connect securely using couplers or connectors for longer runs.
- Seal and Test: Add waterproof sealant at joints and the end of the channel. Fill the concrete base up to the required height to fix the channel in place, making sure the top of the channel is flush with the finished patio surface.
- Backfill and Finish: Fill the joint between the channel and the patio with dry mortar for stability. Fit the metal or plastic grates securely to prevent blockages from leaves and debris.
| Step | Details |
|---|---|
| Mark trench location | Use pegs and wood for straight lines |
| Set grade | 1:80 slope with straightedge and shims |
| Mix base | Aggregate and cement mix for a level base |
| Lay channel | Connect sections; confirm alignment |
| Seal joints | Waterproof sealant on all connections |
| Backfill and grate | Dry mortar around channel; fit grate for debris protection |
Alternative Drainage Methods: Quick Overviews
French Drains (Gravel Trenches with Perforated Pipe)
French drains are gravel-filled ditches containing perforated pipes for subsurface drainage. They are ideal for redirecting water that collects at the patio’s edge.
- Dig a trench slightly deeper than the pipe diameter
- Line with landscape fabric to prevent clogging
- Lay the perforated pipe, cover with clean gravel, wrap and backfill
Slot Drains for Modern Patios
Slot drains combine subtlety and strength by being embedded in the patio surface (often concrete). The main visible feature is a slim opening running the length of the drain. Key installation aspects include:
- Layout and plan starting from the catch basin
- Use pre-sloped sections for efficient drainage
- Secure and level before pouring surrounding concrete
- Fully encase the drain in concrete for durability
- Connect to underground pipe or dry well as needed
Troubleshooting Common Drainage Problems
Drainage issues can crop up in older patios or those exposed to heavy use. Watch for:
- Pooled Water: Usually means insufficient slope or blocked drains. Re-level surfaces or clean channels promptly.
- Overflow: Debris in grates, or undersized drains, can lead to backups. Upgrade system or increase frequency of cleaning.
- Surface Erosion: Indicates too much water flow in one area. Disperse outflow evenly using multiple outlets.
- Damp Smells or Algae: Persistent moisture. Ensure paving is breathable and increase sun exposure if possible.
Best Practices for Long-Term Drainage Success
- Maintain at least a 1:80 slope for surface water flow
- Do not block patio edges—leave gaps for water escape if practical
- Regularly clean grates, channels, and outlets to prevent blockages
- Inspect and clear any nearby gutters and downspouts to limit overflow into the patio area
- Add landscaping features (swales, rain gardens) to help absorb redirected water
- Use high-quality sealants and materials for a lasting installation
Frequently Asked Questions (FAQs)
How much slope is required for effective patio drainage?
A minimum of 1:80 slope (about 1/8 inch per foot) is necessary to direct water away from your patio and toward drains or garden areas.
Can I add drains to an existing patio?
Yes, retrofit solutions exist, like cutting and embedding a channel drain along the lowest edge or integrating a French drain adjacent to the patio. However, this often requires specialized tools and careful planning.
How do I maintain my patio drainage system?
Regularly remove leaves, soil, and debris from grates and gutters. Inspect the system after heavy rainfall to ensure water is moving freely and make any repairs promptly.
What is the difference between a French drain and a channel drain?
A French drain is a gravel-filled trench with a perforated pipe that captures water below the surface, while a channel (trench) drain is a linear surface drain with a grate installed at grade level to collect surface runoff.
Do I need a professional for patio drainage installation?
Simple solutions (surface grading, channel drains) can be DIY projects with careful planning. For extensive rerouting, complex site conditions, or retrofitting concrete patios, professional installation is recommended for best results.
Conclusion: A Lasting Investment in Outdoor Living
Investing in effective patio drainage means more than just preventing puddles—it also protects your home’s foundation, landscaping, and outdoor enjoyment for years to come. By assessing your unique space, choosing the right drainage method, and following proven installation steps, you can create a resilient, functional, and attractive patio environment that stands up to the elements every season.
References
- https://www.thisoldhouse.com/patios/100269/how-to-install-a-patio-drainage-system
- https://www.bradstone.com/blog/how-to-install-a-patio-drainage-system
- https://www.ndspro.com/content/dam/ndspro/documents/hdc/NDS-man-HDC-installation-instructions-patio-pool-medium-en.pdf
- https://globaldraintech.com/blogs/articles/how-to-install-a-slot-drain-on-a-pool-deck-or-patio
- https://www.youtube.com/watch?v=rnAY7NeDAQ4
- https://www.youtube.com/watch?v=cIdbmTdOjaY
- https://www.ndspro.com/us/en/resources/articles/french-drain-installation-guide
- https://blog.landscapedrains.com/trench-drain-installation
