Retrograde Pyelogram: Procedure, Uses, and What to Expect
Understand the retrograde pyelogram—a diagnostic urinary tract imaging test—including its purpose, process, preparation, and what to expect before, during, and after.
A retrograde pyelogram is a specialized imaging test that utilizes contrast dye and X-rays to provide clear, detailed images of the urinary tract, including the kidneys, ureters, and bladder. This procedure is most commonly performed alongside cystoscopy and serves as a crucial tool for diagnosing and evaluating urinary system conditions.
What Is a Retrograde Pyelogram?
A retrograde pyelogram is an X-ray imaging test that allows physicians to visualize the upper urinary tract by injecting a contrast dye directly into the ureters via a thin catheter. This process enhances the visibility of the urinary system’s internal structures, enabling identification of abnormalities such as blockages, tumors, or stones. Unlike intravenous pyelography, which introduces dye through the bloodstream, a retrograde pyelogram delivers the dye directly to the targeted area, often providing clearer images for certain conditions.
- Targets: Kidneys, ureters, bladder
- Method: Direct injection of contrast dye into the ureters through a cystoscope
- Imaging: X-rays capture the movement and distribution of the dye
When Is a Retrograde Pyelogram Recommended?
This test is recommended for a range of clinical scenarios where direct visualization of the upper urinary tract is crucial. Common indications include:
- Suspected blockage in the urinary tract (e.g., from kidney stones, tumors, blood clots, or strictures)
- Unexplained hematuria (blood in the urine)
- Assessment of urinary tract anatomy prior to surgery
- Confirmation of placement or position of urinary catheters or stents
- Evaluation when standard imaging cannot be performed or is inconclusive
- Assessment of patients with poor kidney function, as less contrast dye is absorbed by the body
Your healthcare provider may also recommend this test based on your personal symptoms and medical history.
Understanding the Urinary Tract
To appreciate the purpose of a retrograde pyelogram, it’s helpful to understand the main components of the urinary tract:
- Kidneys: Bean-shaped organs that filter waste from the blood to create urine
- Ureters: Thin tubes that transport urine from each kidney to the bladder
- Bladder: Hollow organ that stores urine until urination
- Urethra: Channel that releases urine from the bladder to outside the body
How Does a Retrograde Pyelogram Work?

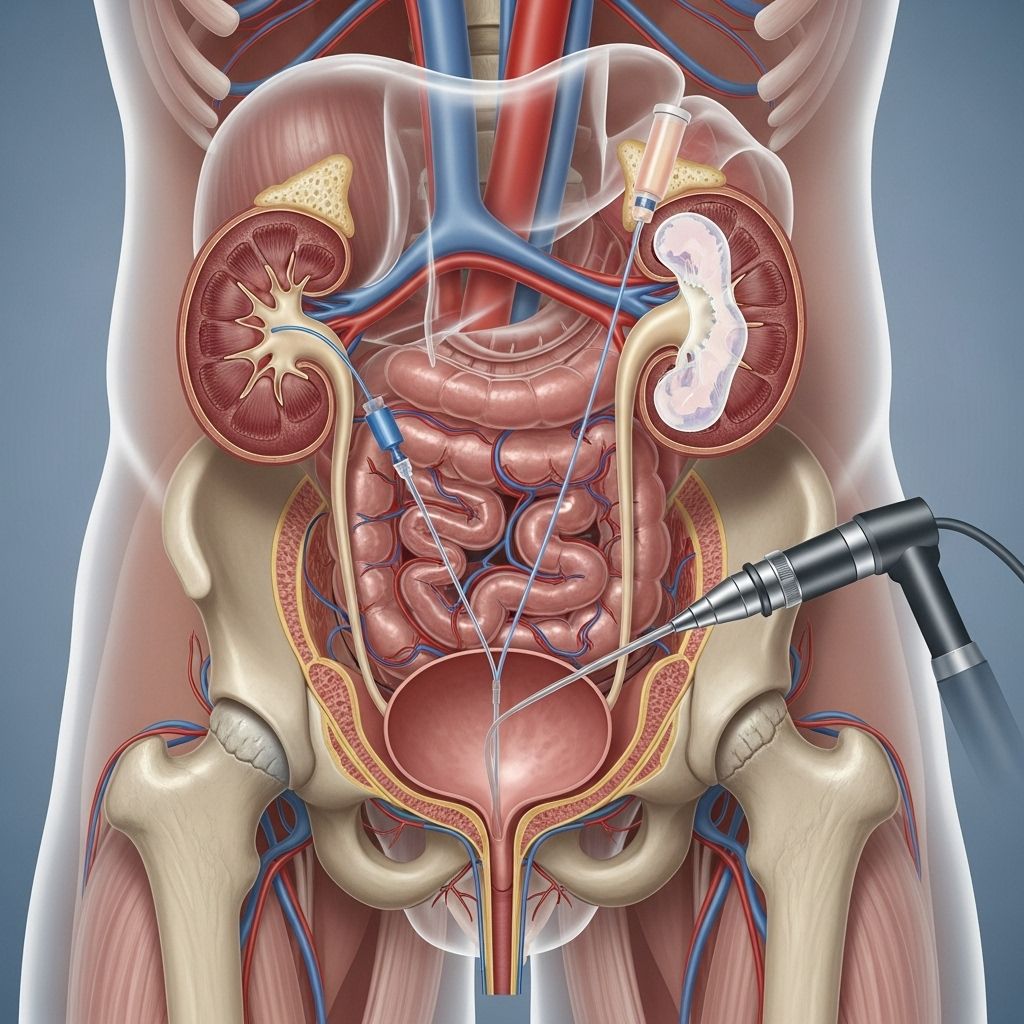

The procedure uses an endoscope (usually a cystoscope), a thin, flexible, lighted tube that allows direct visualization and access to the lower urinary tract. Through this, a smaller catheter is guided into the ureters, and contrast dye is carefully injected. This dye coats the lining of the urinary tract, making each segment stand out under X-ray imaging.
| Feature | Retrograde Pyelogram | Intravenous Pyelogram (IVP) |
|---|---|---|
| Contrast Dye Delivery | Directly injected into ureters | Injected into a vein |
| Sedation Required | Often yes (sedative or anesthesia) | Not typically |
| Allergic Reactions | Lower risk; minimal systemic absorption | Higher risk if allergic to dye |
| Ideal For | Obstructions, stent placements, anatomical mapping | Routine overview of urinary tract |
What others are reading
Preparation for a Retrograde Pyelogram
Successful preparation helps ensure the procedure is safe and effective. You should always follow your healthcare provider’s instructions carefully.
- Medical Review: Disclose medications, allergies (especially to contrast dye, iodine, or latex), and any ongoing conditions.
- Fasting: Do not eat or drink for a specified time (often several hours) before the procedure, as sedation or anesthesia may be used.
- Medication Adjustment: You may be asked to stop certain blood thinners or medications that affect bleeding or kidney function before the test.
- Consent: You will review and electronically or physically sign an informed consent outlining potential risks and benefits.
- Clothing: Remove jewelry and wear a hospital gown.
Step-by-Step: What Happens During the Procedure
A retrograde pyelogram can be performed as an outpatient procedure or during a hospital stay, depending on your specific situation.
- Preparation and Positioning: You’ll lie on your back with your feet supported in stirrups (lithotomy position) on the X-ray table. An intravenous (IV) line will be placed for sedation or anesthesia as needed.
- Cystoscope Insertion: The healthcare provider inserts the lubricated cystoscope into the urethra, slowly advancing it into the bladder. The bladder is examined for abnormalities.
- Catheter Placement: A small catheter is passed through the cystoscope and inserted into one or both ureters (the narrow tubes connecting kidneys and bladder).
- Dye Injection: A radiopaque contrast dye is gently injected through the catheters into the ureters and up to the renal pelvis and calyces (the inner part of the kidneys).
- X-Ray Imaging: A sequence of X-ray images is taken as the dye outlines the ureter and kidney structures, making abnormalities visible to the provider.
- Stent or Catheter Placement (if needed): If a blockage is found, a ureteral stent (flexible hollow tube) may be placed to allow urine passage around the obstruction.
- Completion: When imaging and interventions are complete, the catheters and cystoscope are withdrawn.
The actual procedure time varies but typically ranges from 15 minutes to an hour.
What to Expect After a Retrograde Pyelogram
Recovery varies depending on whether you were sedated or had general anesthesia, as well as the exact interventions performed. After the test:
- Observation: You will be monitored in a recovery area until vital signs (blood pressure, pulse, breathing) stabilize and you are alert.
- Discharge: Outpatients can usually go home the same day. If you were already hospitalized, you may return to your room.
- Urine Monitoring: Initial urine may appear pink or reddish. This is usually harmless and resolves within hours to a day. Continue to monitor for adequate urine flow and report any severe changes.
- Pain Management: Mild discomfort or burning during urination is common for a short time. Only use pain relief medicines (like acetaminophen) recommended by your provider; avoid aspirin or NSAIDs if instructed, as they can increase bleeding risk.
When to Call Your Doctor
- Fever or chills
- Redness, swelling, or unusual discharge from the urethral opening
- Pain that worsens or doesn’t subside
- Increased blood visible in the urine
- Trouble urinating or inability to pass urine
Risks and Possible Complications
Retrograde pyelography is generally safe, but, as with any medical test, there are potential risks and rare complications:
- Allergic reaction to the contrast dye (rare because little is absorbed into the bloodstream)
- Urinary tract infection (UTI) or cystitis from instrumentation
- Bleeding (hematuria), typically minor and self-limited
- Pain or discomfort during urination, temporarily after the procedure
- Injury to the ureter, bladder, or urethra (extremely rare)
Advantages of a Retrograde Pyelogram
- Provides detailed images of the kidneys, ureters, and bladder anatomy
- Direct dye placement enables clear visualization even if intravenous routes are not possible
- Allows for simultaneous intervention, such as stent placement, if obstruction is found
- Minimizes risk for those with dye allergies or kidney impairment—less systemic dye absorption
Alternatives to Retrograde Pyelogram
Depending on your medical context, your provider may consider alternative or complementary imaging tests:
- Intravenous pyelogram (IVP): Contrast dye injected into a vein, X-rays follow dye through urinary tract
- Ultrasound: Uses sound waves, no dye or radiation, ideal for some kidney and bladder conditions
- CT Urography: High-resolution computed tomography scan with IV or oral contrast
- Magnetic Resonance Urography (MRU): MRI-based imaging, no radiation
FAQs About Retrograde Pyelogram
Q: Is the retrograde pyelogram painful?
A: Most patients experience only minor discomfort. Sedation or anesthesia is often used, so you should not feel pain during the procedure. Mild burning or urgency can occur with first urination afterward, but these symptoms usually resolve quickly.
Q: How long does the procedure take?
A: The test generally lasts 15–60 minutes, depending on your anatomy, underlying problems, and whether any interventions (like stenting) are needed.
Q: Can I go home the same day?
A: Most retrograde pyelograms are performed on an outpatient basis. However, you may need someone to drive you home due to sedation, and you should avoid driving or making important decisions until the sedative has worn off fully.
Q: What are the signs of a complication I should watch for?
A: Notify your healthcare provider if you experience fever, chills, increasing pain, persistent blood in urine, trouble urinating, or new discharge from the urinary opening.
Q: Can I have this test if I’m allergic to contrast dye?
A: Yes, because very little dye is absorbed into the body during a retrograde pyelogram, the risk of allergic reaction is significantly lower than with intravenous tests. Always inform your healthcare provider about any allergies before the procedure.
Key Takeaways
- A retrograde pyelogram is an advanced X-ray procedure for diagnosing and managing upper urinary tract conditions.
- The test uses direct dye injection through a cystoscope, allowing for enhanced imaging and intervention in one session.
- Preparation and aftercare instructions are essential for a safe experience and quick recovery. Always follow your medical team’s recommendations closely.
References
- https://www.urmc.rochester.edu/encyclopedia/content.aspx?ContentTypeID=92&ContentID=P07713
- https://www.healthline.com/health/retrograde-pyelogram
- https://uuanj.com/surgical/cystoscopy-stent-placement-retrograde-pyelogram/
- https://www.webmd.com/a-to-z-guides/what-is-retrograde-pyelogram-test
- https://my.clevelandclinic.org/health/treatments/22684-retrograde-pyelogram
- https://www.urologyhealth.org/urology-a-z/r/retrograde-pyelography
- https://healthy.kaiserpermanente.org/health-wellness/health-encyclopedia/he.retrograde-pyelogram-for-kidney-stones.hw204587
