Why Combo Heat Pumps Are Changing Home Heating and Hot Water
Discover the rise of combo heat pumps, a sustainable technology for efficient home heating and hot water.
Combo Heat Pumps: The Future of Home Heating and Hot Water
Heating our homes and producing hot water are two major demands on energy in residential buildings. Traditionally, these needs have been met through separate systems—boilers or furnaces for space heating, and water heaters for domestic hot water. Combo heat pumps are transforming this landscape, offering a highly efficient, low-carbon solution for both needs in one integrated system.
What Is a Combo Heat Pump?
A combo heat pump (also known as a combination or integrated heat pump) is a single machine designed to provide both space heating and domestic hot water. These systems leverage the same technology as conventional heat pumps—using refrigerant cycles to extract heat from the air, ground, or water—but direct that heat to both your home’s heating system and your hot water supply.
- Space Heating: Distributes warm air or hot water through radiators, underfloor heating, or forced air systems.
- Hot Water: Delivers domestic hot water for showers, baths, dishwashers, and sinks.
- Integrated Controls: Manages where heat is directed depending on demand, maximizing efficiency.
This combination addresses two essential home needs with one appliance, simplifying the mechanical room and leveraging the high efficiency of heat pump technology for all-year savings and comfort.
Why Are Combo Heat Pumps Gaining Popularity?
The growing interest in combo heat pumps is driven by several converging factors that make them an attractive alternative to gas furnaces and traditional water heaters:
- Decarbonization Pressure: Many homeowners and policymakers are seeking to cut carbon emissions. Heat pumps run on electricity and can be powered by renewable energy, unlike fossil-fuel-burning boilers.
- Efficiency Gains: Air and ground source heat pumps provide 2–4 times more energy than the electricity they consume, thanks to their high coefficient of performance (COP). This leads to significant energy and cost savings compared to electric or gas resistance heating.
- Incentives and Regulations: Many governments and utilities are introducing rebates, incentives, and regulations that favor electric heat pumps over traditional gas appliances.
- One-Stop Upgrade: Homeowners replacing both heating and hot water systems find combo heat pumps a compelling way to tackle both upgrades at once with one highly efficient system.
How Do Combo Heat Pumps Work?

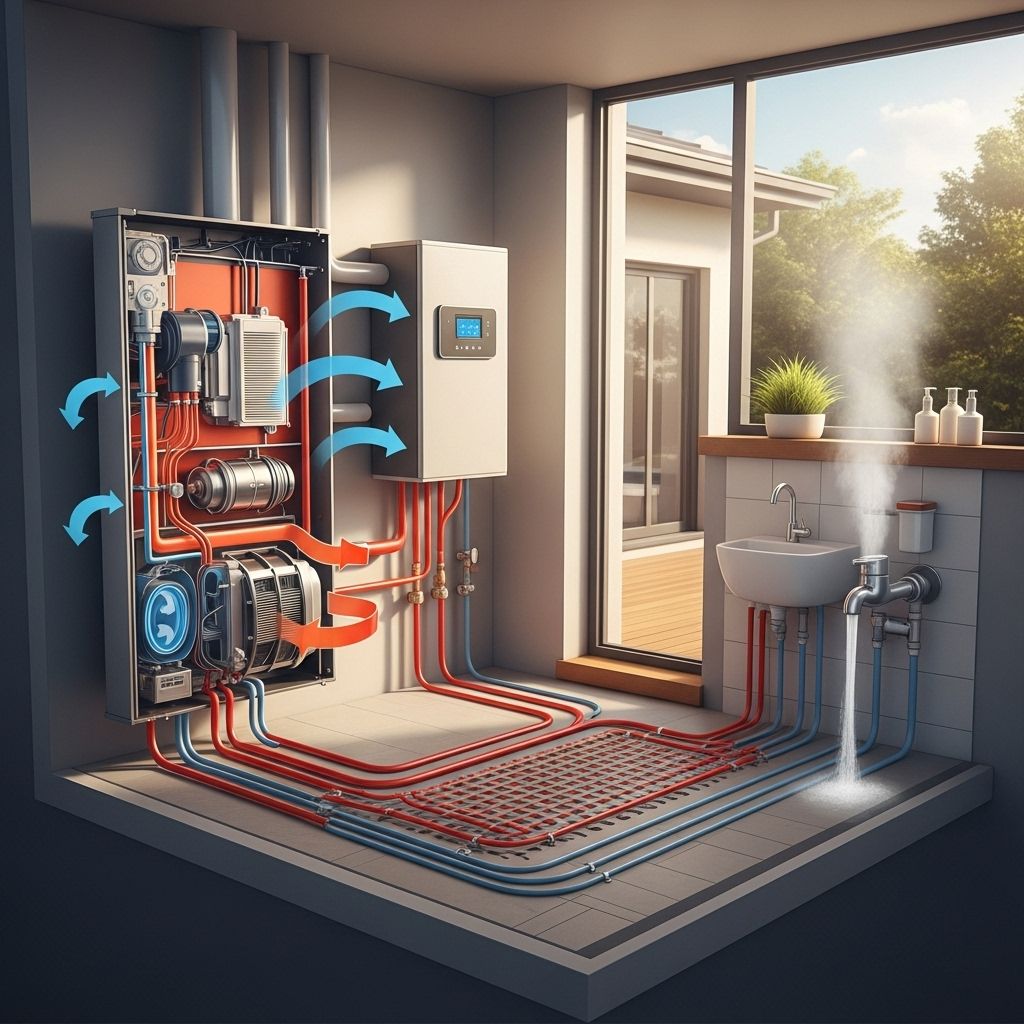

The core idea behind a combo heat pump is the smart integration of heat distribution. The system includes:
- Heat Pump Compressor Unit: Extracts heat from the air, ground, or water.
- Hot Water Storage Tank: Stores heated water for domestic use, often with integrated coils for maximum efficiency.
- Hydronic or Air Distribution: Transfers heat into indoor spaces, commonly via underfloor piping, radiators, or forced air ducts.
- Control System: Monitors demand for heating versus hot water and seamlessly prioritizes or balances loads to supply both optimally.
This centralization reduces equipment, simplifies plumbing, and allows both space heat and hot water supply to benefit from heat pump efficiency.
Types of Combo Heat Pumps
- Air Source Combo Heat Pumps: Extract heat from ambient air. May struggle in extreme cold but offer easier installation and are widespread in moderate climates.
- Ground Source Combo Heat Pumps: Use underground pipes (closed loop or open loop) to harvest stable thermal energy, delivering reliable performance year-round but with higher initial costs.
- Hybrid or Dual-Source Systems: Combine heat pump operation with backup electric or gas elements for redundancy and performance in cold snaps.
What others are reading
Some systems work directly with hydronic (hot water-based) space heating, while others deliver heat via forced air. Many offer a range of capacities and storage tank sizes to suit both small and large homes.
Efficiency and Performance: How Much Can Combo Heat Pumps Save?
Combo heat pumps are among the most efficient means of providing domestic hot water and winter heating. The coefficient of performance (COP)—the ratio of heat delivered to energy consumed—ranges from 2 to 4 for most modern units. This means that for every unit of electricity used, two to four units of heat are supplied to your house or water tank.
- Energy Savings: Switching from conventional electric or gas heating to a combo heat pump can cut heating-related emissions and utility bills by over 50% in many homes.
- Hot Water Efficiency: Modern heat pump water heaters alone can save $200–$600 per year compared to standard electric models, and combo systems extend these savings to both water and space heating.
- Climate Impact: The more your electricity comes from renewable sources, the lower your household’s carbon footprint.
| System Type | Typical Efficiency | COP (Energy Delivered/Energy Used) |
|---|---|---|
| Gas Boiler/Furnace | 85–95% | 0.85–0.95 |
| Electric Resistance Heater | ~100% | 1.0 |
| Standard Heat Pump | 200–400% | 2.0–4.0 |
| Combo Heat Pump | 200–400% | 2.0–4.0 (for heat & water) |
Installation: Where and How Do You Fit a Combo Heat Pump?
Installation demands vary with system type and home layout:
- Ventilation and Space: Air source combo units need sufficient airflow and are typically placed in mechanical rooms, basements, or garages. Ground source versions require yard or borehole access but have less indoor noise and space impact.
- Plumbing Compatibility: Hydronic (water-based) systems integrate well with underfloor heating or radiator networks, while forced air versions may connect directly to ductwork.
- Cold Climate Considerations: Extremely low outdoor temperatures can reduce COP for air-source units. Some newer models, and all ground-source types, maintain good performance down to sub-freezing conditions.
- Professional Assessment: Proper sizing and configuration are vital. Installer experience with combo systems is essential for maximizing benefits.
Key Installation Requirements
- Dedicated space for the compressor and tank
- Access to electric service (most are 240V)
- Efficient insulation in the home for best performance
Cost and Financial Considerations
The cost of combo heat pump systems varies depending on type, size, brand, and installation complexity. Generally, expect higher upfront costs compared to conventional replacements, but significant long-term savings.
- Upfront Equipment: Typical units range from $3,000–$8,000 for air source systems, and $10,000+ for ground source units (due to drilling and installation).
- Installation Costs: Additional $2,000–$6,000 depending on existing heating systems, tank size, complexity, and local labor rates.
- Rebates & Incentives: Many regions now offer sizable rebates, federal tax credits, and utility incentives for approved heat pump installations, reducing effective cost by $1,000–$5,000 in some cases.
- Operational Savings: Annual utility bill reductions of $300–$1,000 are common, depending on your prior heating and hot water method and local rates.
Environmental Benefits
Combo heat pumps offer a host of environmental advantages over fossil-fuel systems:
- Zero Onsite Emissions: Electric operation eliminates combustion byproducts, improving home air quality and safety.
- Renewable Integration: As the grid gets cleaner, using renewable electricity, your heat pump system’s carbon impact drops accordingly.
- Supports Decarbonization Goals: Many cities and regions are creating electrification policies to phase out gas heat and water heating—combo heat pumps are central to these plans.
Challenges and Limitations
No technology is without challenges. Here’s what to watch for:
- Cold Climate Performance: Air source units may see reduced output and efficiency below -15°C (5°F), though advanced models and dual-source systems mitigate this.
- Upfront Costs: The initial price is higher than like-for-like replacements, although incentives help.
- Space and Noise: Some models are bulkier and noisier than standard water heaters or boilers, requiring consideration during placement.
- Installer Familiarity: More installers are becoming trained in these systems, but experience still varies.
Case Study: Real-World Performance
In practice, combo heat pumps are earning positive reviews. Homeowners report noticeable comfort improvements, lower utility bills, and reduced environmental guilt.
- One early adopter noted that switching from a gas boiler and standard water heater to a combo heat pump slashed their natural gas use, resulting in over $700 annual savings and a noticeably quieter home.
- Some users in colder climates highlight the value of backup electric resistance heating for extremely cold days, but most report reliable hot water availability and improved space comfort even in shoulder seasons.
Who Should Consider a Combo Heat Pump?
Combo heat pumps are especially suited for:
- Homeowners replacing both a water heater and space heating system at once
- Anyone planning a major energy upgrade, electrification project, or deep retrofit
- Households seeking to minimize onsite fossil fuel use and carbon footprint
- New construction and deep energy renovations aiming for low-carbon certification
If local electricity rates are low and the power mix includes renewables, the benefits multiply.
FAQs: Combo Heat Pumps Explained
Q: Can a combo heat pump fully replace my existing furnace and water heater?
A: Yes. Most modern combo units are designed to replace both systems, supplying heat and hot water around the clock, assuming proper sizing and installation.
Q: Do combo heat pumps work in very cold climates?
A: Ground source systems perform exceptionally well in cold weather. Air source models are now available with advanced technology for improved performance down to -25°C (-13°F), while hybrid setups include backup heating for rare cold snaps.
Q: Is maintenance more complicated than separate systems?
A: Routine maintenance is generally comparable, with filter cleaning and periodic checks. Combining systems can actually reduce points of failure and plumbing complexity.
Q: Will I see immediate energy savings?
A: Most users see lower monthly bills right away, especially those switching from electric resistance or fuel oil systems. Savings depend on old vs. new equipment, usage patterns, and utility rates.
Q: What about noise?
A: Air source combo heat pumps make some operational noise, similar to a fridge or air conditioner. Ground source types are even quieter. Modern designs keep decibels low, but select placement for comfort.
Conclusion: The Low-Carbon Heating Revolution
Combo heat pumps represent a transformative shift in residential energy use. By integrating efficient heating and hot water in one machine, they simplify upgrades, reduce carbon, provide energy savings, and support the growing need for electrified, sustainable homes. As costs drop and technology improves, combo units are likely to become the standard for future-ready homes worldwide.
