What Is a Solar Collector?
Solar collectors are devices engineered to convert the sun’s radiant energy into heat, which is then used for various domestic, commercial, and industrial heating applications. Unlike solar photovoltaic (PV) systems, which convert sunlight directly into electricity, solar collectors focus on heating a fluid, typically water, air, or a heat-transfer liquid, to capture and distribute solar thermal energy.
These systems have enabled homes, businesses, and industries to tap into a free, inexhaustible resource for lowering energy costs, reducing greenhouse emissions, and supporting sustainable development. The range of available collector types ensures suitability for everything from heating swimming pools to powering industrial steam turbines.
How Does a Solar Collector Work?
The core function of a solar collector centers on capturing sunlight and transferring its heat to a fluid. This process typically involves three essential elements:
- Absorber plate or surface: Usually dark-colored to maximize absorption, this surface directly collects the sun’s rays.
- Fluid path (tubes or channels): Water, air, or another heat-transfer fluid flows through the collector, absorbing the heat from the absorber plate.
- Insulation and enclosure: Transparent covers (glazing) and insulated backs and sides minimize heat losses, ensuring efficient energy transfer.
Sunlight enters the collector, passes through the transparent cover, and is absorbed by the designated surface. The heated absorber transmits thermal energy to the circulating fluid, which can then be stored or immediately used for heating purposes. Advanced collectors employ reflective surfaces, vacuums, or tracking systems to boost efficiency and achieve higher operating temperatures.

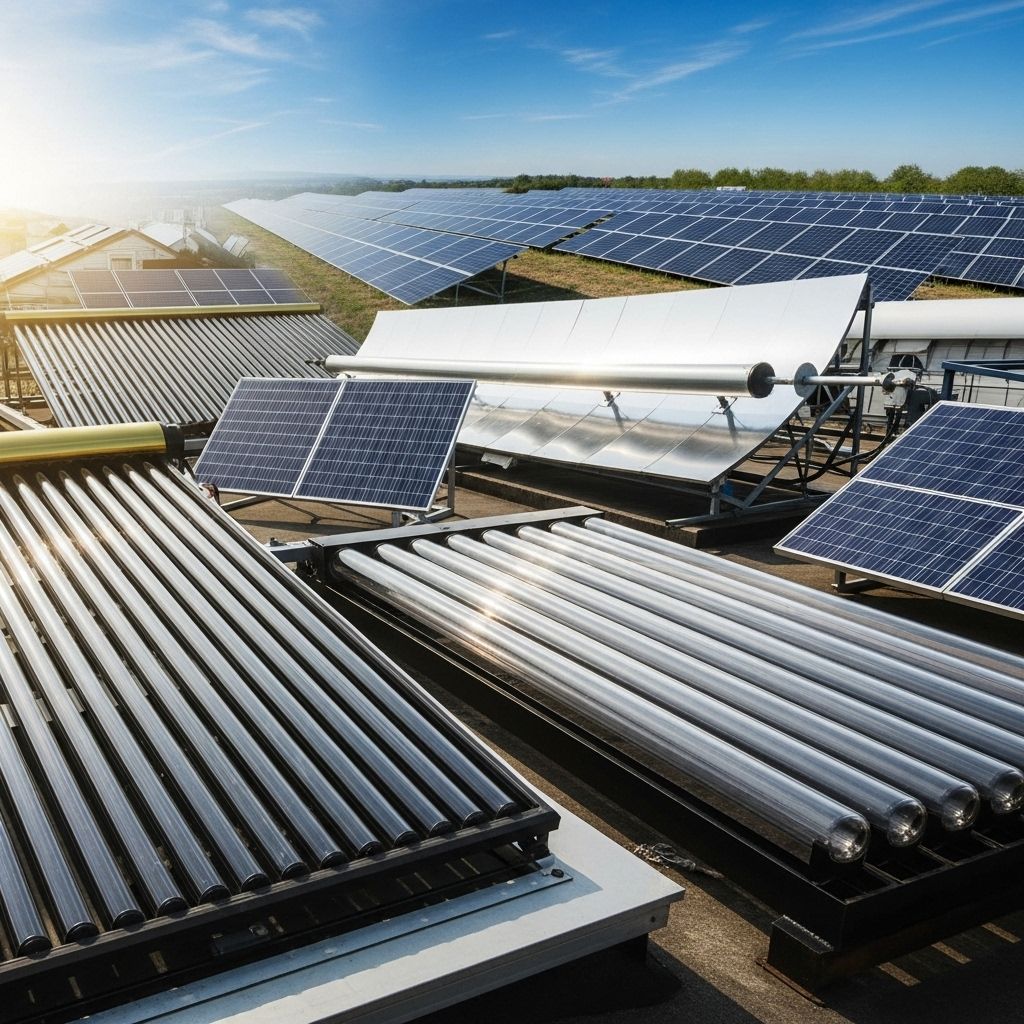

Types of Solar Collectors
Solar collectors are broadly categorized into two major families based on how they interact with incoming sunlight and their resulting temperatures:
- Non-concentrating solar collectors: The surface area that intercepts sunlight is nearly equal to the absorber area. These are most common in residential and commercial heating.
- Concentrating solar collectors: Mirrors or lenses focus sunlight from a large catchment area onto a smaller absorber, achieving much higher temperatures. These are essential in industrial applications and solar thermal power generation.
| Type | Operating Temp Range | Typical Efficiency | Main Applications |
|---|---|---|---|
| Flat Plate Collector (FPC) | 30–80°C | Up to 70% | Residential/commercial water and air heating |
| Evacuated Tube Collector (ETC) | 50–150°C | 60–70% | Water heating, space heating, solar cooling |
| Parabolic Trough Collector | 60–300°C | Up to 80% | Industrial heating, power generation |
| Parabolic (Dish/Point Focus) | 100–400°C+ | Up to 80% | Steam generation, concentrated solar power |
1. Flat Plate Solar Collectors
The flat plate collector is the most widespread type of solar thermal collector. Designed as a shallow, insulated box with a transparent cover, it uses a dark absorber plate beneath to transfer the sun’s heat to a series of pipes (fluid channels) attached to the plate.
What others are reading
- Main use: Heating water and air for homes, businesses, and pools.
- Features: Durable, low-maintenance, can use both direct and diffuse sunlight.
- Operating range: Effective in moderate climates requiring temperatures up to 80°C.
This technology’s simplicity and robustness make it an ideal fit for most residential solar hot water systems, and it is often seen on rooftops worldwide.
2. Evacuated Tube Solar Collectors
Evacuated tube collectors use rows of parallel glass tubes, each with an inner absorber and a vacuum between layers to dramatically reduce heat loss. A heat pipe or fluid channel inside each tube transfers absorbed energy to a circulating fluid.
- Main use: Highly efficient water heating, solar space heating, and solar cooling projects.
- Features: Withstands colder climates, effective even on overcast days, and achieves higher temperatures than flat plates.
- Operating range: Up to approximately 150°C.
The design is especially popular in places with less direct sunlight or where winter conditions demand high performance and low heat loss.

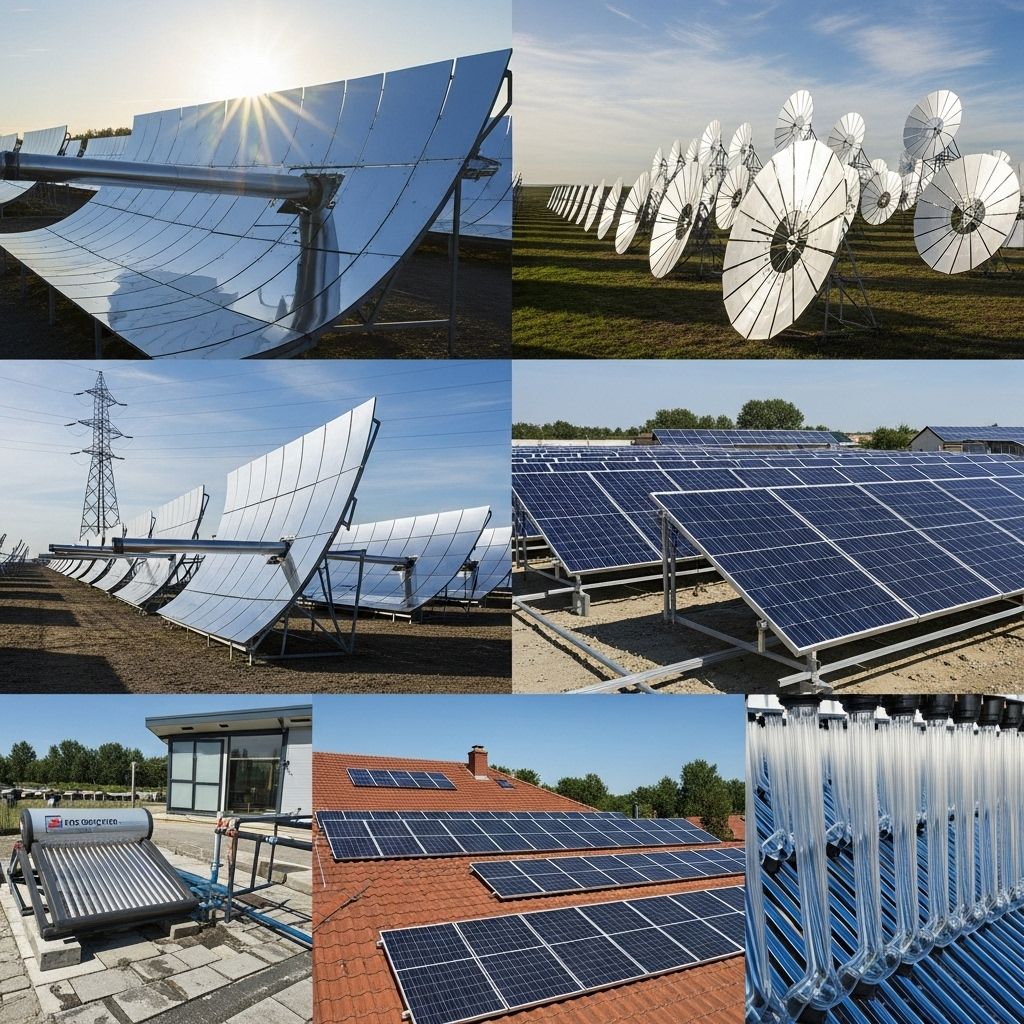

3. Concentrating Collectors
Collectors in this family use optical devices (mirrors or lenses) to concentrate sunlight onto a reduced absorber area, achieving temperatures high enough for industrial processes and electricity generation.
Parabolic Trough Collectors (Line Focus)
Parabolic troughs comprise long, curved mirrors that focus sunlight onto a linear tube running through the trough’s focal line. A heat transfer fluid (typically synthetic oil or molten salt) flows through this tube and is heated to create steam for turbines or provide high-temperature process heat.
- Main use: Large-scale solar thermal power plants, industrial heating.
- Features: Can use tracking systems to follow the sun and maximize output.
- Operating range: 100–300°C, often higher with advanced fluids.
Parabolic Dish Collectors (Point Focus)
Parabolic dish collectors, or point focus systems, use large bowl-shaped mirrors to focus sunlight onto a single, small receiver. This setup enables extremely high temperatures (>400°C), making it suitable for running Stirling engines, advanced research, or high-intensity applications.
- Main use: Powering heat engines for electricity, high-temperature research.
- Features: Highest concentration ratio, requires dual-axis sun tracking, and advanced safety control systems.
Other Concentrating Collector Types
- Fresnel Reflectors: Use segmented flat mirrors to focus sunlight.
- Central Towers: Numerous mirrors (heliostats) focus sunlight onto a central receiver on a tower, heating fluids or producing steam for electricity.
Major Applications of Solar Collectors
Solar collectors are found in a variety of sectors, offering a path to cleaner, more sustainable thermal energy. Key applications include:
- Domestic Hot Water: Homes use solar collectors to deliver hot water for showers, washing, and other household needs, significantly reducing energy bills.
- Space Heating: Solar energy is used to warm air or water for heating interiors via radiant floor systems, radiators, or forced air.
- Swimming Pool Heating: One of the most cost-effective solar uses, enabling comfortable pool use well beyond the traditional swimming season.
- Industrial Process Heating: Factories and processing plants substitute fossil-fueled boilers with solar for processes like pasteurization, textile treatment, or desalination.
- Electric Power Generation: Concentrating collectors produce high-temperature steam to drive turbines in solar power plants, providing utility-scale renewable electricity.
Secondary applications include solar-driven absorption cooling systems, grain drying, greenhouse heating, and remote water distillation.
Pros and Cons of Solar Collectors
Advantages
- Renewable and inexhaustible: Relies only on sunlight, a limitless and free resource.
- Reduces energy costs: Substantially lowers utility bills when used for water or space heating.
- Lowers carbon footprint: No greenhouse gas emissions during operation.
- Diverse applications: From home hot water to industrial steam production.
- Low maintenance: Most designs are durable and require little upkeep once installed.
Disadvantages
- Dependent on sunlight: Efficiency drops on cloudy days or in low-sun locations (mitigated with storage or hybrid systems).
- High initial investment: Upfront costs can be significant, although incentives and long-term savings help offset this.
- Space requirements: Flat plate and evacuated tube systems may need significant roof or ground space.
- Complexity for advanced systems: Tracking, maintenance, and control needs increase for large concentrating or power-generating installations.
Solar Collectors vs. Solar Panels: What’s the Difference?
Though often confused, solar collectors and solar panels (PV modules) serve distinct functions:
- Solar collectors: Capture sunlight and convert it into heat (thermal energy) for heating water/air or generating steam.
- Solar panels (photovoltaics): Use semiconductor materials to convert sunlight directly into electricity.
The technologies are sometimes combined in “hybrid” systems that maximize the benefits of both electricity and heat production for a holistic solar solution.
Choosing the Right Solar Collector
Selecting the optimal solar collector depends on specific factors, such as:
- Geographic location: Available sunlight, climate, and seasonal patterns influence collector type and sizing.
- Intended application: Domestic hot water vs. space heating vs. industrial heat determine temperature and performance needs.
- Budget: Cost of system, installation, and maintenance play a major role; incentives and rebates may be available.
- Roof or ground space: Available installation area may dictate collector design and layout.
Consulting with a qualified solar installer ensures a system that delivers optimal performance and long-term value.
Environmental Benefits of Solar Collectors
Switching to solar thermal technology offers substantial environmental advantages:
- Reduces fossil fuel use, decreasing air pollution and carbon dioxide emissions.
- Supports energy independence, lowering reliance on imported fuels.
- Promotes sustainable development in both developed and emerging markets.
- Minimizes operating emissions—solar collectors produce no direct pollution while in service.
Frequently Asked Questions (FAQs)
Q: What is the main difference between a solar collector and a solar panel?
A: A solar collector transforms sunlight into thermal energy (heat), while a solar panel (PV module) converts sunlight directly into electricity.
Q: Which type of solar collector is best for home water heating?
A: Flat plate and evacuated tube collectors are both excellent choices for residential hot water systems. Flat plate collectors are more common in warmer regions, while evacuated tubes perform better in colder or cloudier climates.
Q: Can solar collectors work in winter or on cloudy days?
A: Yes, especially evacuated tube designs, which are more efficient in diffused sunlight and retain heat well in cold conditions. However, output will be lower compared to clear, sunny days.
Q: What maintenance do solar collectors require?
A: Most collectors need only periodic inspection and cleaning. Advanced or concentrating systems may require maintenance for moving parts, tracking systems, and safety devices.
Q: Are there incentives for installing solar collectors?
A: Many regions offer rebates, tax credits, or grants for solar thermal installations. Always check local policy resources or consult a solar professional to find current offers.
Conclusion
Solar collectors are at the forefront of harnessing renewable energy for practical use, providing vital heating solutions for homes, businesses, and industry while protecting the environment and curbing carbon emissions. With continued advancements and supportive policies, solar thermal technology is poised to remain a key element of a sustainable energy future.
