Heat Pump Water Heaters in Passive House Design
Explore the synergy between heat pump water heaters and Passive House design, maximizing efficiency, comfort, and sustainability.
Integrating heat pump water heaters into Passive House construction represents a forward-thinking approach to sustainable comfort, maximizing energy efficiency and reducing emissions. This article explores their compatibility, benefits, challenges, and the strategies required to capitalize on their full potential in high-performance homes.
Table of Contents
- Why Heat Pump Water Heaters Suit Passive House
- How Heat Pump Water Heaters Operate
- Integrating Water Heating with Passive House Principles
- Comfort and Performance Considerations
- Possible Drawbacks and Mitigation Strategies
- The Future: Toward Fully Electrified, Low-Emissions Homes
- Frequently Asked Questions
Why Heat Pump Water Heaters Suit Passive House
Passive House design focuses on ultra-low energy use for heating and cooling, achieved through:
- Robust insulation in walls, floors, and roofs
- High-performance, airtight windows and doors
- Minimization of thermal bridging
- Mechanical ventilation with heat recovery
Due to this exceptional envelope, water heating can become one of the dominant energy uses in a Passive House. Traditional systems (like gas or standard electric water heaters) lose a significant share of energy to inefficiency or emissions. In contrast, heat pump water heaters leverage electricity to extract heat from ambient air, moving three to four times more thermal energy than the electricity they consume, making them ideally suited for ultra-efficient homes.
How Heat Pump Water Heaters Operate
A heat pump water heater works much like a refrigerator in reverse. Instead of expelling heat from an interior compartment, it captures heat from air where it’s installed and transfers it to the water tank:
- Heat Extraction: Warm air, drawn into the system, passes over evaporator coils containing refrigerant.
- Heat Transfer: The refrigerant absorbs heat, then is compressed to raise its temperature further.
- Water Heating: The now-hot refrigerant circulates through a coil in the water tank, transferring its heat to the water.
- Cycle Continues: The cooled air is vented out into the space or redirected, depending on system setup.
This cycle enables these units to achieve efficiencies of 250–300%, far exceeding conventional water heaters.
Typical Installation and Configurations

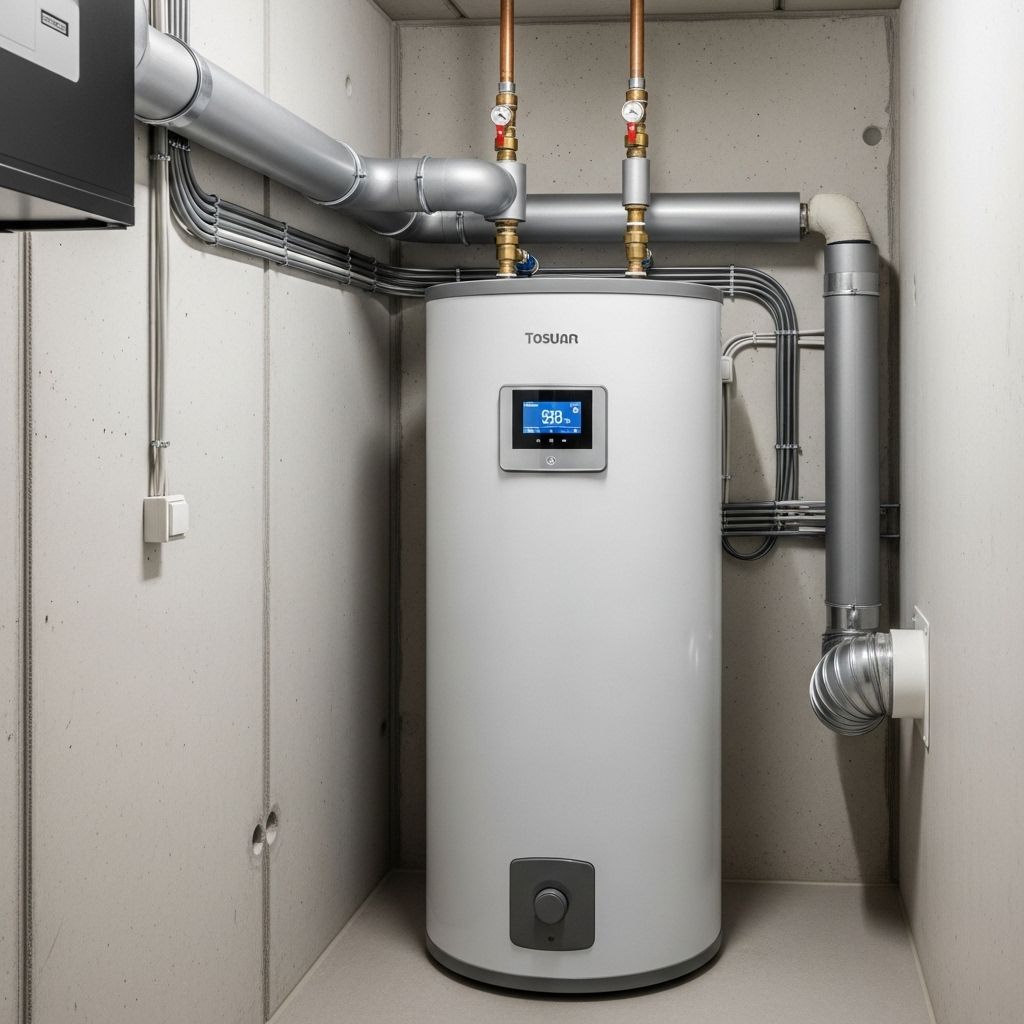

- Standalone Units: The most common—integrates the heat pump mechanism and the tank in a single appliance, often installed in utility rooms, basements, or garages.
- Split Systems: The heat pump unit is outside, with the storage tank inside, useful for tight spaces or minimizing indoor temperature impacts.
Key design factors include placement (to ensure sufficient air volume), ambient temperature range, and compatibility with the existing mechanical setup.
Integrating Water Heating with Passive House Principles
Since Passive Houses have extremely low heating and cooling loads, integrating systems becomes a central design consideration:
What others are reading
- Some Passive House builders combine space heating and domestic hot water (DHW) supply via compact heat pump systems, reducing complexity and installation costs.
- Strategic placement can allow heat pump water heaters to contribute to summer cooling in certain climates by discharging cooler, dehumidified air into the living space.
- Pairing with mechanical ventilation systems for synergy—either for space heating or managed airflows further increases efficiency.
System selection often depends on climate, heating load, local energy costs, and preferences regarding installation, noise, and maintenance.
Energy Impact and Grid Benefits
Studies show Passive Houses:
- Have up to 45% lower annual energy load compared to code-compliant homes.
- Exhibit significantly lower winter peak loads, thanks to high insulation and rapid heat recovery.
- Enable load shifting strategies—by running heat pumps during periods of grid surplus (e.g., midday solar), the house stores thermal energy, reducing reliance on the grid at peak demand.
- Often seamlessly integrate solar PV for powering water heaters, further lowering overall consumption and emissions.
Comfort and Performance Considerations
While energy savings are paramount, integrating heat pump water heaters in Passive Houses must also address comfort and usability:
- Units remove heat and moisture from their surrounding air, which can cool and dry the installation room. In summer, this can be a benefit—providing a modest cooling effect in utility rooms, closets, or even open-plan living spaces. In winter, however, unwanted cooling may occur if not managed properly.
- Noise levels, while improved in newer models, may be a consideration in open-plan or highly interconnected spaces.
- Heat pump water heaters do not produce hot water as quickly as traditional gas units, making proper tank sizing critical for high-demand households.
- Very airtight Passive Houses require careful balancing of ventilation and air management if the heat pump water heater is located within the conditioned envelope.
Performance Comparison Table
| Water Heater Type | Efficiency (COP) | Annual Operating Cost | Emissions |
|---|---|---|---|
| Standard Gas | ~0.76–0.80 | Medium–High | High (Combustion byproducts) |
| Electric Resistance | 1.0 | High | Depends on electricity source |
| Heat Pump (HPWH) | 2.5–3.0 | Low | Very low, especially with renewables |
Synergy with Passive House Envelope
- Thermal stability: Passive House buildings have long thermal time constants, meaning their interior temperatures change very slowly. This helps buffer any minor temperature impacts from a heat pump water heater.
- Grid flexibility: By exploiting the low peak loads and “preheating” or “precooling” strategies, more demand can be shifted off-peak or to times of surplus clean electricity generation.
Possible Drawbacks and Mitigation Strategies
No system is without challenges, especially where extreme efficiency and airtightness meet mechanical systems:
- Unwanted cooling in winter may occur if the heat pump water heater is inside the thermal envelope. Solutions include ducting exhaust air to the outside or installing in spaces separated from primary living areas.
- Space constraints: Heat pump water heaters require access to a minimum volume of air to function effectively, typically a room of at least 750–1,000 cubic feet.
- Noise concerns: Modern units are much quieter, but acoustic separation can be useful in open floor plans.
- Slower recovery rate: Sizing the storage tank correctly and using smart controls addresses potential wait times for hot water.
- Cost: Initial cost is higher than basic electric or gas heaters, but lower operating costs typically recoup the difference within several years.
User and Builder Tips
- Locating the water heater near primary hot water uses (showers, kitchens) minimizes heat loss during delivery.
- Combining with demand-control recirculation systems further reduces wasted energy.
- Engaging experienced Passive House consultants ensures appropriate system selection and installation in ultra-tight envelopes.
The Future: Toward Fully Electrified, Low-Emissions Homes
Both Passive House and heat pump water heater technology represent a shift toward fossil fuel-free, all-electric buildings:
- All-electric systems enable seamless integration with on-site solar PV and future renewable energy grids.
- Heat pump technology already delivers air conditioning, space heating, and domestic hot water far more efficiently than legacy equipment.
- Advancements in performance, integration, and control flexibility are making it even easier for new and retrofit Passive House projects.
Regulatory incentives, utilities, and green building programs increasingly recognize and support heat pump adoption, especially in climate-forward jurisdictions.
Frequently Asked Questions
Q: How efficient are heat pump water heaters compared to standard systems?
A: Heat pump water heaters are typically 2.5 to 3 times as efficient as standard electric resistance heaters and much more efficient than gas models, which means lower energy use and utility bills.
Q: Will a heat pump water heater make my Passive House too cold in winter?
A: When positioned inside the conditioned envelope, there may be minor cooling, but Passive House insulation and low heating load make this effect insignificant or manageable. In cold regions, units can be ducted to remove cool exhaust air or placed outside the primary living spaces.
Q: Are there compatibility concerns for installing heat pump water heaters in airtight homes?
A: Careful placement and planning are essential to maintain air quality, manage sound, and avoid negative pressure. Integration with mechanical ventilation can help in ultra-tight Passive House envelopes.
Q: What maintenance do heat pump water heaters require?
A: Like all water heaters, regular checks for scale buildup, filter cleaning, and ensuring clear airflow are important. Annual or biannual professional service is generally recommended.
Q: How do I further lower emissions with my heat pump water heater?
A: Pairing your water heater with solar PV, purchasing renewable electricity, and participating in utility demand response programs will cut emissions and costs even further.
Conclusion
Integrating heat pump water heaters into Passive House designs can deliver remarkable reductions in energy use and emissions while supporting the transition to resilient, comfortable, fossil-free living. With technical advances and growing adoption, this pairing is fast becoming a cornerstone of sustainable housing worldwide.
