How to Install a DIY Rainwater Flushing Toilet System
Conserve water and save money by installing a rainwater flushing toilet system in your home—complete DIY guidance.
Introduction to Rainwater Flushing Toilet Systems
Using rainwater for flushing toilets is a practical and eco-friendly method to reduce household water consumption. Potable (drinking) water is often used for tasks that don’t require such high-quality water, like flushing toilets, which can account for up to 30% of residential water use. By harnessing rainwater, you can minimize potable water waste, lower your water bills, and embrace a more sustainable lifestyle.
Why Use Rainwater for Toilet Flushing?
Benefits of rainwater toilet flushing extend beyond cost savings and include:
- Conservation: Reduces reliance on municipal water and protects natural water resources.
- Cost savings: Decreases water bills, especially in households with high toilet use.
- Sustainability: Lowers energy costs and carbon footprint related to water treatment and supply.
- Resilience: Provides a backup water supply during shortages or outages.
Planning Your DIY Rainwater Toilet System
Before embarking on your project, consider the following planning steps:
- Review local regulations on rainwater harvesting and plumbing codes.
- Determine the most suitable location for the rainwater tank or barrel, ideally near a downspout and close to the toilet.
- Choose an appropriate size for the storage tank based on local rainfall and the anticipated number of toilet flushes.
- Ensure you have or can access all necessary tools and materials.
Materials and Tools Needed
A typical DIY rainwater toilet flushing system requires the following:
- Polyethylene rain barrel or water tank (capacity as needed)
- Gutter system and downspout with water diverter (first-flush diverter recommended)
- PVC pipes and connectors (for both intake and overflow)
- Water filters or screen guards to remove debris
- Brass or plastic garden hose splitter/valve
- Braided vinyl tubing (commonly 3/8″ inner diameter, 5/8″ outer)
- Adapter fittings (brass or plastic) to connect hose, barrel, and toilet inlets
- Float valve or pump (manual or electric, if gravity isn’t sufficient)
- Concrete mix or sturdy platform to support the tank
- Teflon plumber’s tape for leak-proof seals
- Basic hand tools (drill, spanners, saw, screwdrivers, measuring tape)
Step-by-Step Guide to Installing a Rainwater Flushing Toilet System
1. Site Preparation and Tank Placement
Choose the right location for your rain barrel or tank. Place it near a downspout for easy rainwater collection. If using gravity for water delivery, elevate the tank—ideally, 8 feet or higher above toilet level—to create enough pressure.
- Use a concrete base, pallets, or sturdy platform for support.
- Check that the area is flat and can handle the full weight of the tank.
2. Connecting Gutters and Downspouts
Proper gutter installation is essential for maximizing rain capture and directing water efficiently to your storage tank.
- Install gutters along the roof’s edge.
- Attach downspout(s) leading to the tank’s intake point.
- Clear gutters of debris and fit leaf screens where necessary.
- Install a first-flush diverter to discard the initial, often contaminated runoff and protect your system’s cleanliness.
3. Installing and Plumbing the Storage Tank
Once the tank is in place:
What others are reading
- Connect the main downspout to the tank inlet using PVC piping—secure joints with PVC solvent cement.
- Ensure there’s an overflow outlet for excess rainwater; connect the overflow back to the stormwater system or another safe location.
- Install a water filter or screen guard at the inlet to capture debris.
- Screw in a brass ball valve at the tank base, sealing threads with Teflon tape.
4. Setting Up Supply Lines from Barrel to Toilet
The next step is to transport collected rainwater from barrel to toilet efficiently and safely.
- Attach a length of braided vinyl tubing or a garden hose from tank outlet to the toilet cistern intake.
- Fit appropriate adapters and hose splicers for secure connections; use Teflon tape on threads to prevent leaks.
- Install a selector valve (garden hose splitter) to allow you to switch between rainwater and mains water sources.
- For systems without enough height/pressure, use a small electric pump or gravity-assisted float valve mechanism.

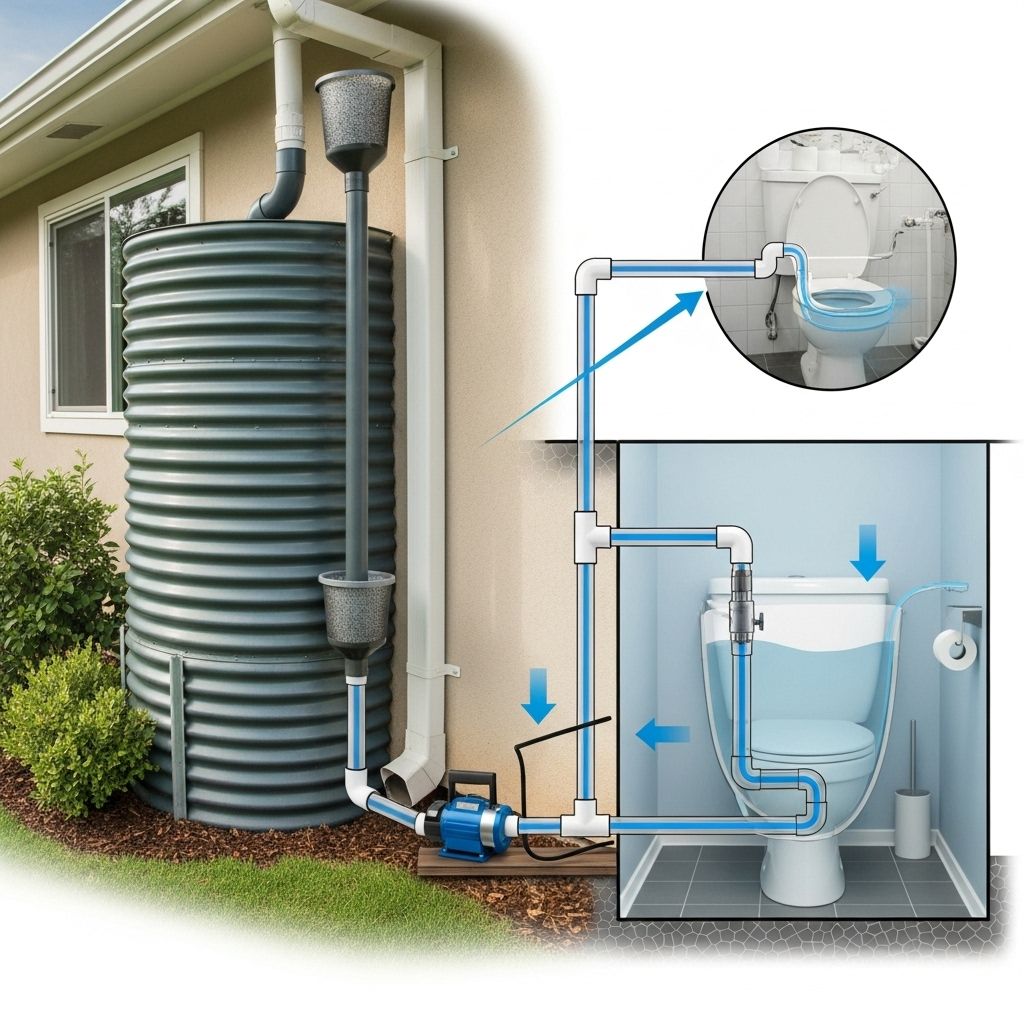

A basic system diagram is illustrated below:
| Component | Function |
|---|---|
| Gutter/Downspout | Collects rainwater from roof |
| First-flush diverter | Diverts dirty initial runoff |
| Storage tank/barrel | Stores filtered rainwater |
| Overflow outlet | Releases extra water |
| Braided hose/PVC pipe | Conveys water to toilet |
| Selector valve | Switches water source (rainwater/mains) |
| Toilet tank/cistern | Receives clean water for flush |
5. Inside the Toilet: Valve and Plumbing Adapters
Most modern toilet cisterns have flexible points of entry for water. You may be able to attach the rainwater input into an existing auxiliary hole, often located above the normal water line to prevent siphonage and leaks.
- Install a float valve specifically designed for gravity or pump-fed systems.
- If using a pumped system, include a simple float switch to automate the pump when the cistern requires refilling.
Be sure that electrical elements (if present) are fully waterproofed and that any external wires are securely sealed against water ingress.
6. Testing and Adjustments
Before regular use, it’s essential to test the system for leaks, proper flow, and ease of switching between rainwater and mains supply. Fill the barrel with 10+ gallons of water and flush the toilet several times to check refill speed and overall operation.
- Inspect all joints and adapters for leaks.
- Check that the selector valve operates smoothly and reliably.
- Monitor water clarity and ensure filters are working.
Special Considerations and Maintenance
A rainwater toilet system is low-maintenance but requires occasional attention for optimal operation:
- Clean filters regularly to prevent clogging.
- Inspect hoses and adapters for signs of wear or leaks.
- Check the tank for sediment buildup and flush as needed.
- During long dry spells, switch to mains water or ensure the tank is topped up.
- Ensure overflow is directed away from building foundations to avoid water damage.
Pros and Cons of DIY Rainwater Toilet Flushing
| Pros | Cons |
|---|---|
| – Reduces potable water use – Lowers utility bills – Relatively simple for DIYers – Improves sustainability | – Initial installation costs – Requires periodic maintenance – Potential for pressure issues (if gravity only) – Dependent on rainfall availability |
Common Challenges and Solutions
- Pressure too low: Elevate the storage barrel further or add a small pump.
- Filters clogging frequently: Improve gutter cleaning and use finer mesh filters.
- Overflow leaks: Ensure overflow pipes are clear and sized correctly.
- Switching between rainwater and mains: Use a quality selector valve and test it routinely.
Safety and Regulations
Check all local and national building codes before installing a rainwater system. Some regions have specific requirements for disconnecting rainwater from potable lines to prevent cross-contamination. Always use backflow prevention valves if you connect to existing plumbing.
Frequently Asked Questions (FAQs)
Q: How much rainwater can I collect from my roof?
A: As a rough estimate, one inch of rain on a 1,000 square foot roof yields about 600 gallons of water. Actual collection depends on roof material, gutter efficiency, and rainfall.
Q: Can I use a rainwater system for flushing all my toilets?
A: Yes, if you have sufficient storage and a well-designed distribution system, you can serve multiple toilets with a single rainwater tank.
Q: Do I need a pump for my rainwater toilet system?
A: A pump is necessary if gravity flow is insufficient, which can occur if the storage tank is not at least a few feet above the inlet pipe of the toilet cistern.
Q: Is rainwater safe for flushing toilets?
A: Yes, with proper filtration to remove debris and regular maintenance, rainwater is ideal for flushing. It is not suitable for drinking unless further purification is employed.
Q: Will I save money by installing a rainwater toilet system?
A: Savings depend on local water rates, rainfall, and how much you reduce potable water use. Ecological benefits may outweigh direct financial gains, especially in water-scarce areas.
Final Tips for Success
- Start small with a single system, expand as your confidence and needs grow.
- Consider integrating solar power for pumps to maximize sustainability.
- Document your installation for future maintenance and improvements.
- Engage friends or local DIY enthusiasts for advice and troubleshooting.
Conclusion
Installing a rainwater toilet flushing system is a straightforward and rewarding DIY project that significantly reduces your impact on the local water supply while saving money and promoting environmental stewardship. By following these practical steps, maintaining your installation, and adapting strategies to your home’s unique needs, you can play a part in sustainable living right from your bathroom.
